1.4 Component Names
32 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Single-phase 200 Vac Models:
CIMR-VBA0006[B/F] to CIMR-VBA0012[B/F]
Three-phase 200 Vac Models:
CIMR-V2A0010[B/F] to CIMR-V2A0020[B/F]
Three-phase 400 Vac Models:
CIMR-V4A0001[B/F] to CIMR-V4A0011[B/F]
Figure 1. 7

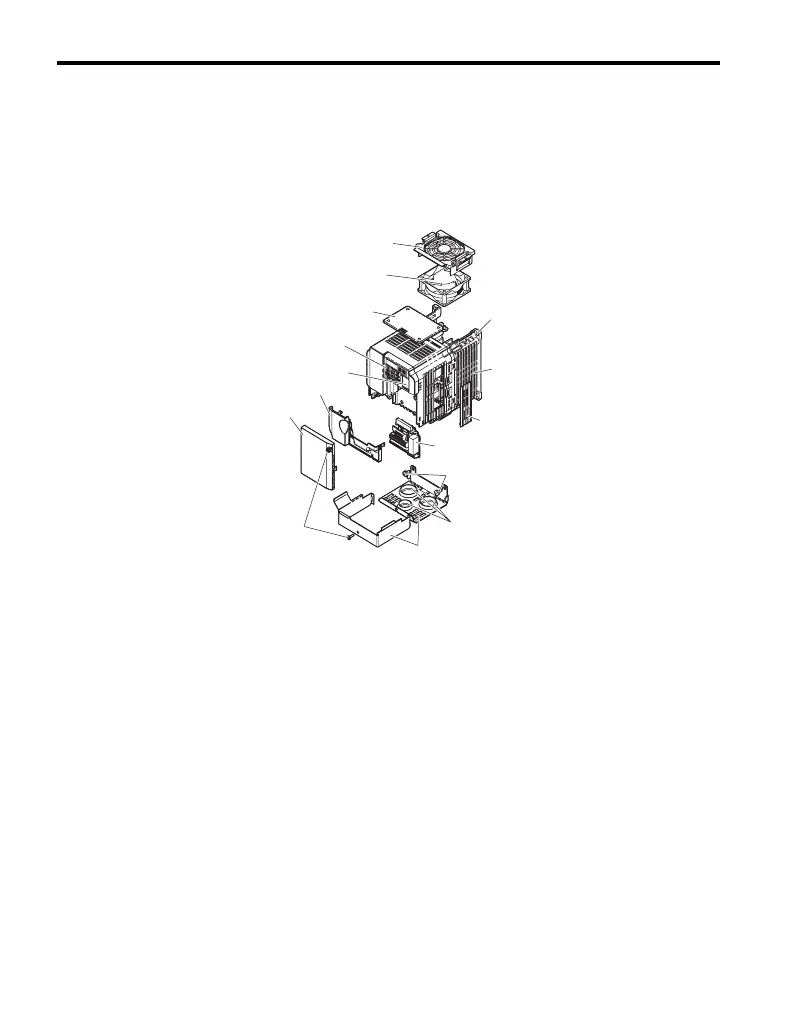

Figure 1.7 Exploded view of IP20/NEMA Type 1 Components
Three-phase 200 Vac Model CIMR-V2A0012[B/F]
A – Fan cover I – Front cover screws
B – Mounting hole J – Front cover
C – Heatsink K – Terminal cover
D – Cable cover L – Comm port
Refer to Network
Communications on page 427
E – Terminal board
Refer to Table 3.6 on page 77
M – LED operator
Refer to Using the Digital LED
Operator on page 102
F – Cover screws N – Top cover
G – Rubber bushing O – Cooling fan
Refer to Drive Cooling Fans on
page 278
H – Bottom cover
A
B
C
D
E
F
H
G
I
J
K
L
M
N
O
