YASKAWA V1000 Series

3.5 Protective Covers
66 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

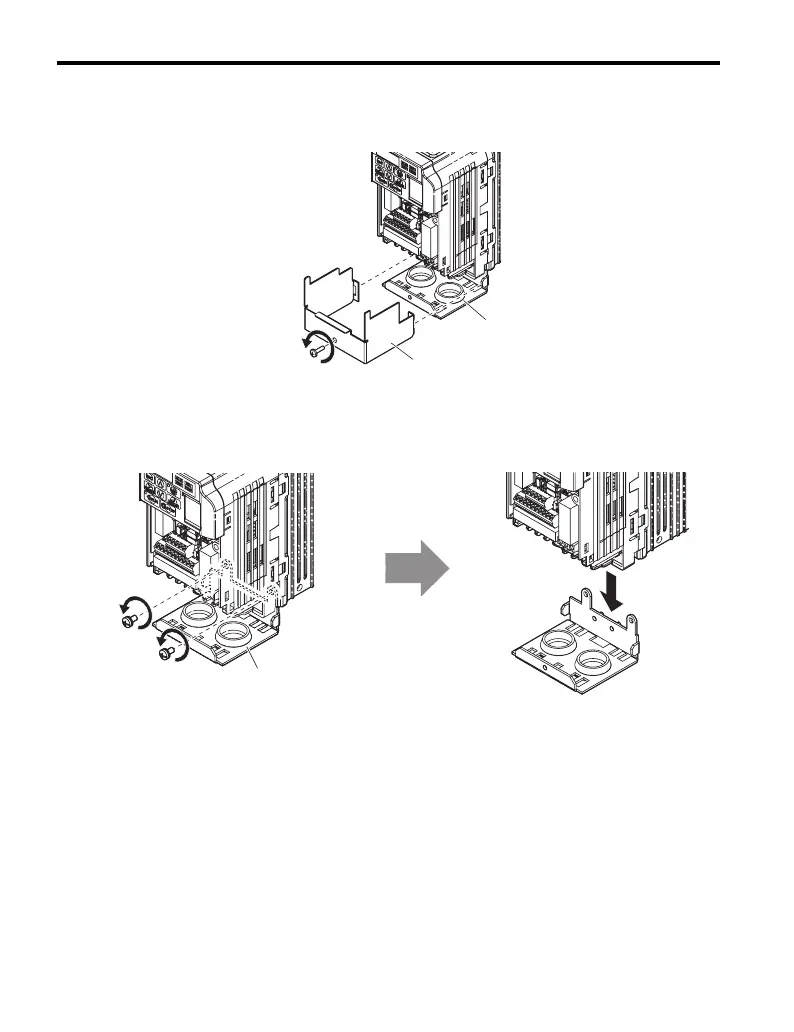

2. Loosen the screw on the terminal cover (Figure 3.12, B) to remove the
terminal cover and expose the conduit bracket (Figure 3.12, A).
Figure 3. 12
Figure 3.12 Remove the Terminal Cover on an IP20/NEMA Type 1 Drive
3. Loosen the two screws attaching the conduit bracket (Figure 3.13, A) to
remove the conduit bracket.
Figure 3. 13
Figure 3.13 Remove the Conduit Bracket on an IP20/Open-Chassis Drive
A
B
A
