YASKAWA V1000 Series Installation & Start-Up Manual

7.4 Installing Peripheral Devices
300 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Output-Side Noise Filter
A noise filter on the output side of the drive reduces inductive noise and radiated
noise. Figure 7.6 illustrates an example of output-side noise filter wiring.
NOTICE: Do not connect phase-advancing capacitors or LC/RC noise filters to the output
circuits. Improper application of noise filters could result in damage to the drive.
Figure 7. 6

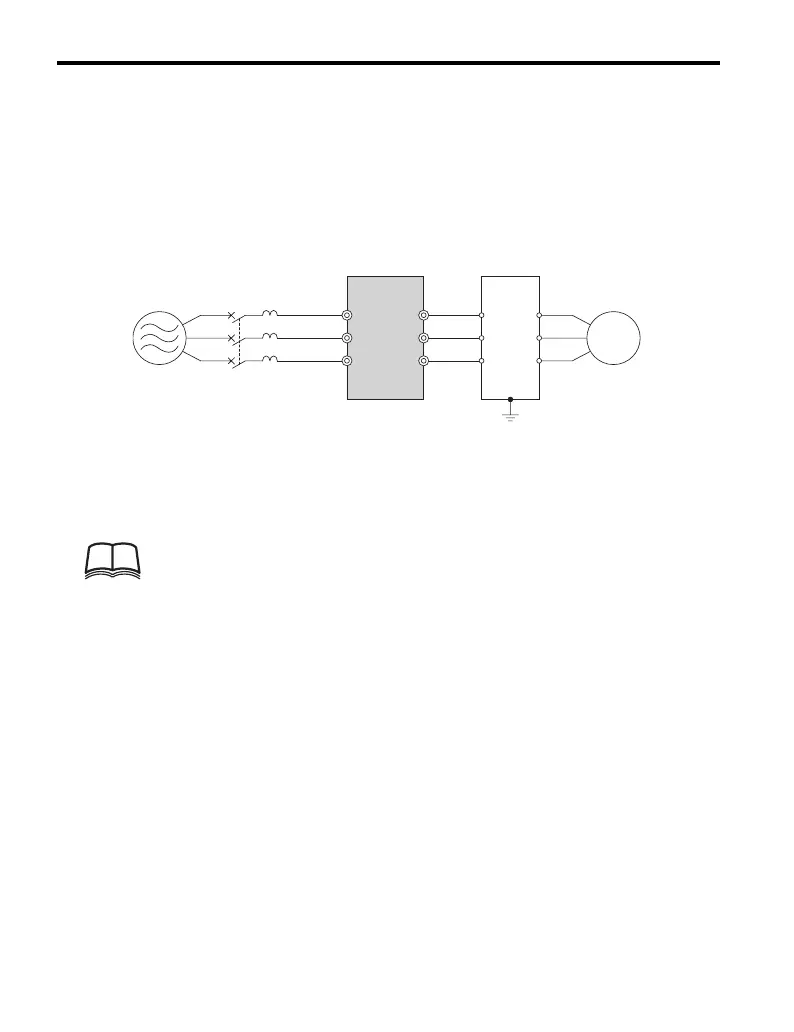

Figure 7.6 Output-Side Noise Filter
A – Power supply C – Output-side noise filter
B – Drive D – Motor
TERMS
TERMS
TERMS
Radiated
noise:
Electromagnetic waves radiated from the drive and
cables create noise throughout the radio bandwidth that
can affect devices.
Induced
noise:
Noise generated by electromagnetic induction can affect
the signal line and may cause the controller to
malfunction.
CB
A
D
R/L1
MCCB
S/L2
T/L3
U/T1
V/T2
W/T3
1
2
3
4
5
6

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
