YASKAWA V1000 Series Installation & Start-Up Manual

4.4 Basic Parameter Adjustments
144 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

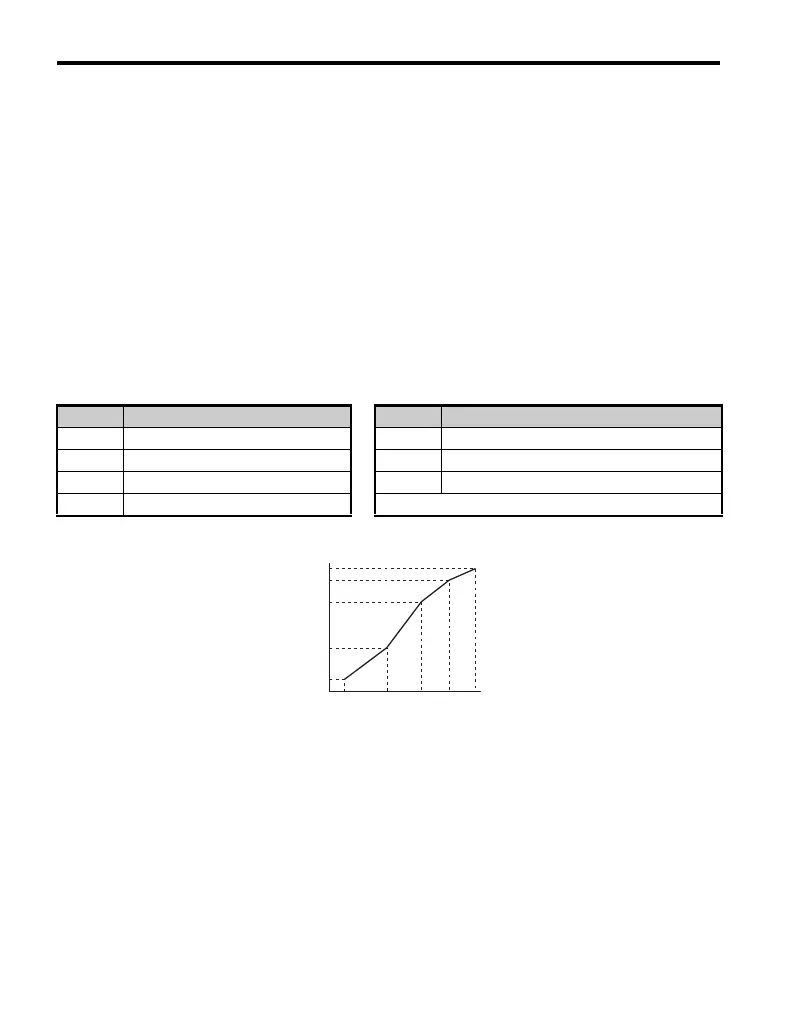

■ Setting Instructions for Setting a V/f Pattern
1. Set the input voltage for the drive. Refer to Drive Input Voltage Setting
E1-01 on page 129.
2. Select one of the two following V/f patterns:
• Select one of the 15 preset V/f patterns (setting = 0 through E)
• Select the Custom V/f pattern (setting = F)
Note: Parameters E1-04 to E1-10 are set automatically and cannot be individually
adjusted when using one of the preset patterns. When using the custom pattern
(E1-03 = F) parameters E1-04 to E1-10 can be manually adjusted to tailor the V/f
pattern to the desired settings.
3. The parameters listed below are set automatically when using one of the
preset patterns. (E1-03 = 0 to E)
When using a custom V/f pattern, set these parameters as desired:
Figure 4. 23
Figure 4.23 V/f Pattern
Note: Drive capacity determines the default settings for the E1 parameters.
No. Parameter Name No. Parameter Name
E1-04 Maximum Output Frequency (FMAX) E1-08 Mid Output Frequency Voltage (VC)
E1-05 Maximum Voltage (VMAX) E1-09 Minimum Output Frequency (FMIN)
E1-06 Base Frequency (FA) E1-10 Minimum Output Frequency Voltage (VMIN)
E1-07 Mid Output Frequency (FB)
Output Voltage (V)
Frequency (Hz)
E1-05
E1-12
E1-13
E1-08
E1-10
E1-09 E1-07 E1-06 E1-11 E1-04

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
