1.2 Model Number and Nameplate Check
24 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Figure 1. 1

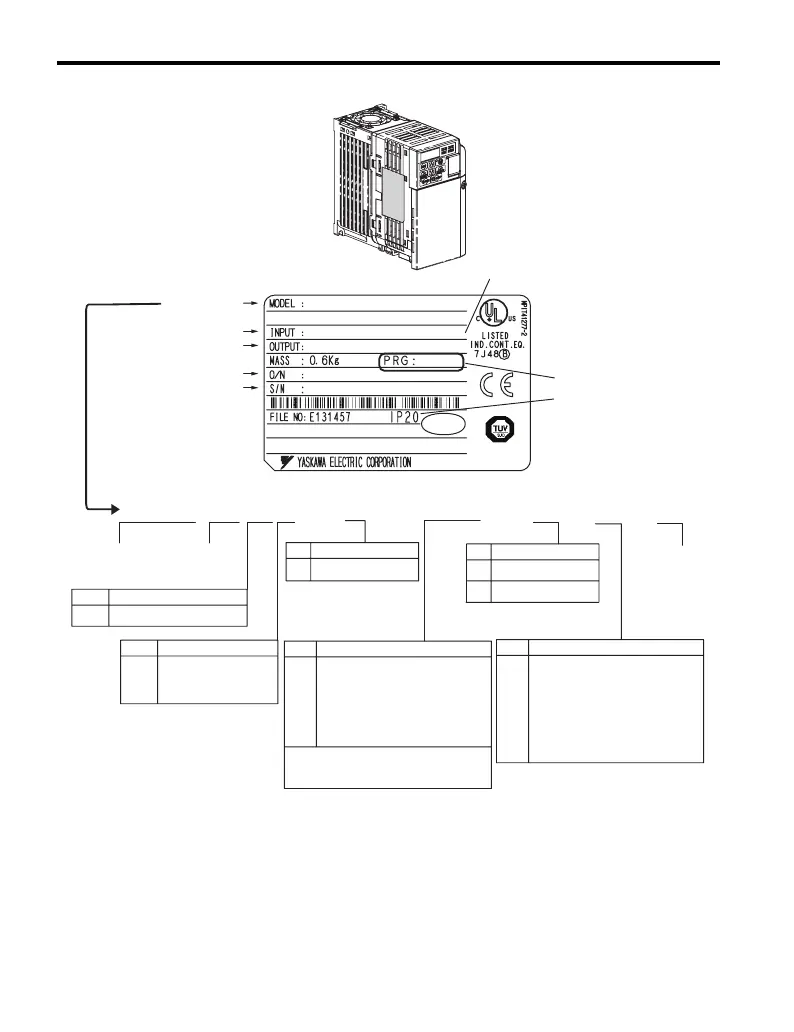

Figure 1.1 Verifying the model number
Note: Refer to Drive Models and Enclosure Types on page 25 for the differences between
the NEMA Type 1 and Open-Chassis enclosures.
%+/487#(##4'8#
#%2*8*\  #
#%2*8*\##

#UUGODNGFKP75#
+056#..#6+10%#6')14; ++
++
 
RoHS
RoHS
PA S S
CIMR - V U 2 A 0001 F A A
AC drive model
Input specifications
Output specifications
Lot number
Serial number
AC Drive V1000 Series
No. Spec.
U Standard USA Spec.
Software version
No. Voltage
B
2
4
1-phase, 200-240 Vac
3-phase, 200-240 Vac
3-phase, 380-480 Vac
No. Enclosure Type
A IP20/Open-Chassis
No. Environmental Specification
A
M
N
C
S
K
P
Q
No coating
Moisture/Dust-proof
Oil-proof
Salt-proof
Vibration-proof
Gas-proof
Moisture/Dust and Vibration-proof
Oil and Vibration proof
Version
B,F
Normal Duty Amps/Heavy Duty Amps
Enclosure Type
No. Software Version
A Standard
No. Output Current A (ND)*
0001
0002
0004
0006
0010
0012
0020
*Ex: ND=Normal Duty Current Rating 200 V class
Refer to tables 1.1 and 1.2 for complete drive
model list.
1.2
1.9
3.5
6.0
9.6
12.0
19.6
IP20/NEMA Type 1
