YASKAWA V1000 Series Installation & Start-Up Manual

5.11 Main Circuit Design
264 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Three-Phase 200 V Class (CIMR-V2A0001 to CIMR-V2A0020)
Three-Phase 400 V Class (CIMR-V4A0001 to CIMR-V4A0011)
Figure 5. 2

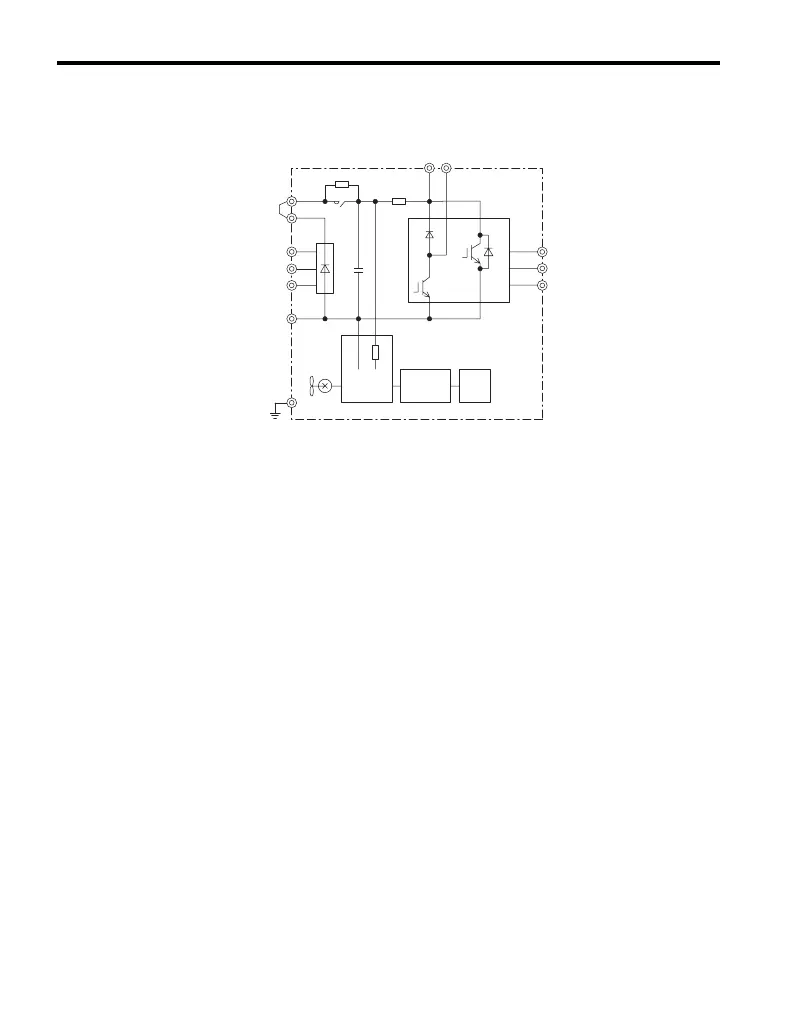

Figure 5.2 Three-Phase Main Circuit Design
Drive
Shunt
resistor
*Cooling
fan
+
R/L1
S/L2
T/L3
㧗1
㧗2
㧙
B1 B2
U/T1
V/T2
W/T3

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
