YASKAWA V1000 Series Installation & Start-Up Manual

6.5 Drive Replacement
288 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Figure 6. 13

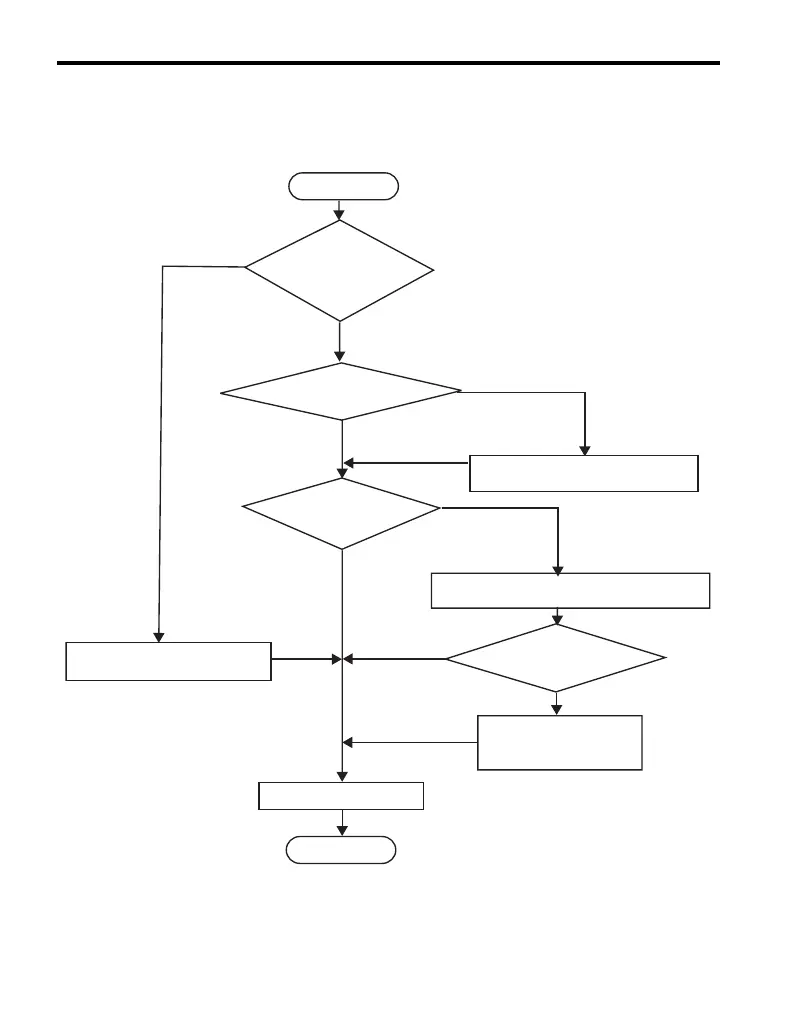

Figure 6.13 Troubleshooting Terminal Board or Control Board Replacement
Set parameter o2-04 to match drive
nameplate rating
Fault “oPE04” drive parameter settings need
to be initialized or uploaded from the TB
Initialize the drive using
parameter A1-03
END
Ready
Parameter setting values
are copied
TB to CNT
Set value = 2220
or 3330
Note: Drive kVA Setting o2-04 = “FF”
inside a new Terminal Board
Troubleshooting Fault Codes at
Terminal Board (TB) or Control Board (CNT) Replacement
NO
YES
NO
YES
NO
YES
Set value = 5550
Initialize the drive using
parameter A1-03 = 2220 or 3330
START
Fault “oPE04”
“CPF06” Fault is
displayed upon drive
replacement
Fault “oPE01”

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
