YOKOGAWA MW100 User Manual

3-56
IM MW100-01E

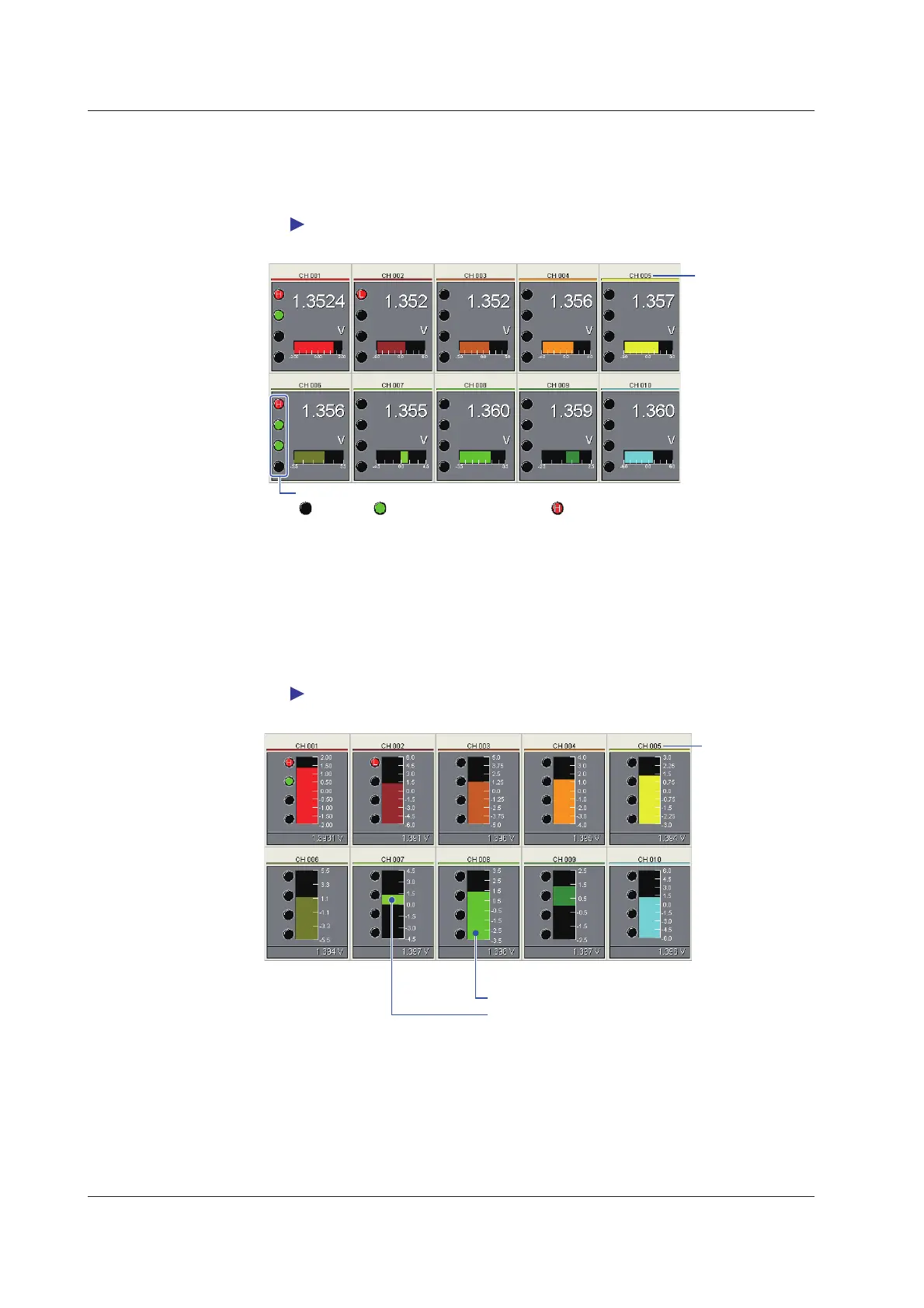

• Digital Display
Displays measured data as numerical values. When alarms are set, the alarm status
is displayed to the left of the numerical value. You can set the graph display reference
position to Normal or Center for the bar graph section.
For a description of the graph display reference position, see “Bar Graph Display” in “Monitor
Display Screen” in this section.
Alarm status
Illuminated: No alarm occurring
Blinking: Alarm hold clear wait
after alarm factor cleared
Illuminated: Alarm occurring
(symbol in circle is alarm type: H/L/rH/rL/dH/dL/tH/tL)
Blinking: Alarm hold clear wait after alarm
factor occurrence
Alarm not
set up
Channel number
display/tag name
display
• Bar Graph
Displays measured values in a bar graph. When alarms are set, the alarm status is
displayed to the left of the bar graph. For information on alarm statuses, see Digital
Display in this section. You can set the graph display reference position to Normal or
Center for the bar graph section.
For a description of the alarm status, see “Digital Display” in “Monitor Display Screen” in this
section.
Channel number display/
tag name display
Graph display reference position
• Normal
• Center
3.15 Measured Data Monitor Display/Settings
