YOKOGAWA MW100 User Manual

3-57
IM MW100-01E
Setting and Data acquisiton
3

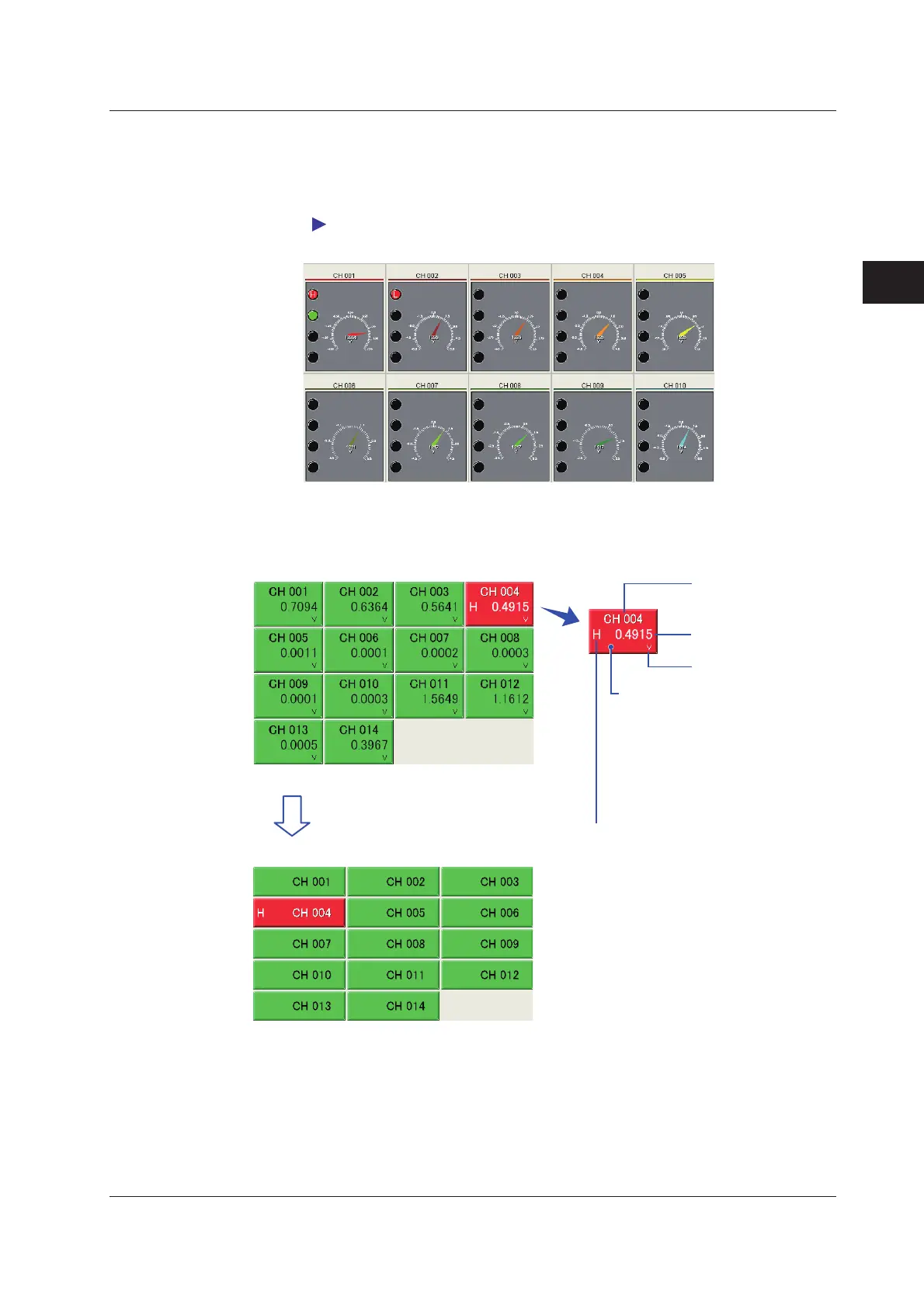

• Meters
Displays measured values in a meter. When alarms are set, the alarm status is
displayed to the left of the meter. For information on alarm statuses, see Digital
Display in this section.
For a description of the alarm status, see “Digital Display” in “Monitor Display Screen” in this
section.
• Overview Display
Displays alarms and measured values using digital values in the Monitor display.
Channels set to Skip are not displayed.
Alarm Status
The alarm status is indicated by color.
• No alarm: Green
• Alarm occurrence: Red
Or, when set to alarm hold, the alarm hold clear
wait display is as follows.
• Alarm hold clear wait
after alarm cause cleared: Green, text blinking
• Alarm hold clear wait
after alarm cause occurs: Red, text blinking
Alarm Type
Displays the alarm type (H/L/rH/rL/dH/dL/tH/tL).
If two or more alarms occur at once, the alarm level
numbers are displayed in order starting from the smallest
number.
Reducing the size of the window causes only
the channel numbers and alarm types to be
displayed.
Channel No./Tag Name
When set to Tag Name display,
the tag name is displayed.
Meas. value/MATH value
Unit
3.15 Measured Data Monitor Display/Settings
