Description and Basic Operation of the SDA-5500 and 5510: Using Auto Test
264
13

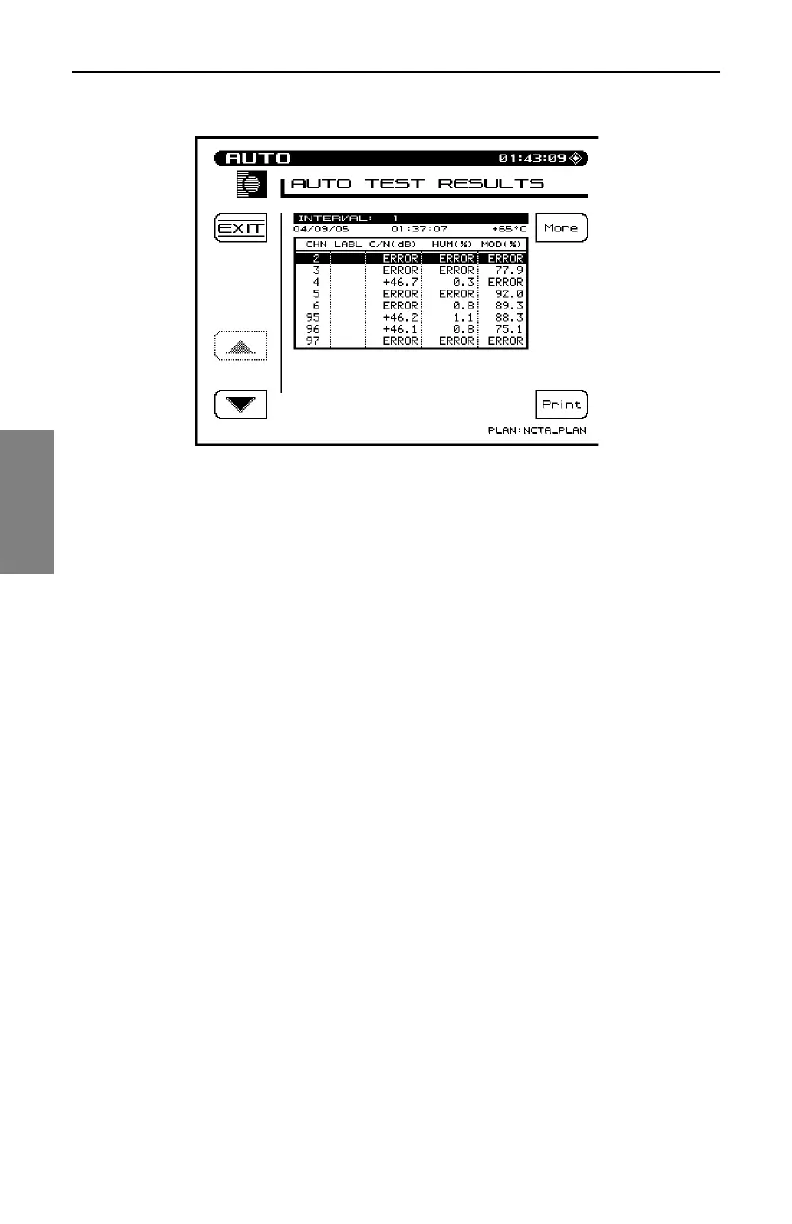

Fig. 13-39 Viewing Measurements Results
When viewing the list of C/N, Hum, and Modulation measurements, the
following symbols will replace the measurement value if an error occurred:
• UNDER - under range
• OVER - over range
• ERROR - synthesizer unlocked
The Print soft key can be used to print out the following report:
-------------------------------------------------------------------
Acterna Autotest REPORT
Model: SDA-5510 Serial No: 1234567 Cal Date: 01/20/00
-------------------------------------------------------------------
Operator: JOHN File: PROOF1 Interval: 1
Date: 07/20/99 Time: 15:18:09 Temp: 75 F
-------------------------------------------------------------------
Location Name: 1028_ELM_ST
Location Type: Trunk
Test Point Type: Forward Trunk In
Test Point Compensation: +0.0 dB
-------------------------------------------------------------------
Area: 00A7
Amp ID: 12-275Z
Power Config: In
Feeder Maker Config: 1
Trunk Termination: No
Voltage Setting: Low
Reverse Pad: +0.0 dB Reverse Equalizer: +0.0 dB
