Operating Modes Chapter 5
DeviceLogix Program
The DeviceLogix program that is shown in Figure 80 is automatically loaded and
enabled in the E300 on power-up or when Operating Mode (Parameter 195) is
set to a value of 28.

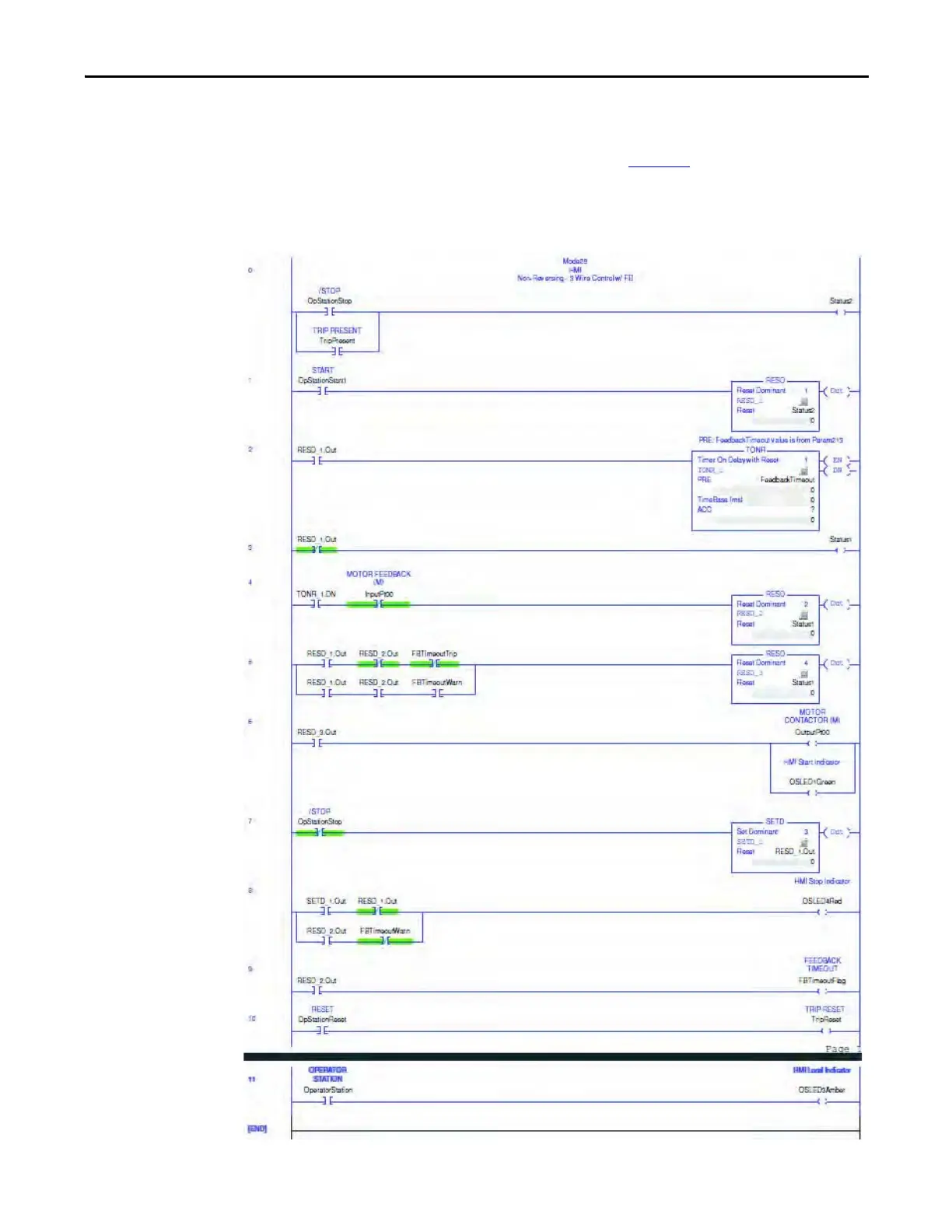

Figure 80 - Non-reversing Starter (Operator Station) with Feedback DeviceLogix Program
