Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 231
Operating Modes Chapter 5

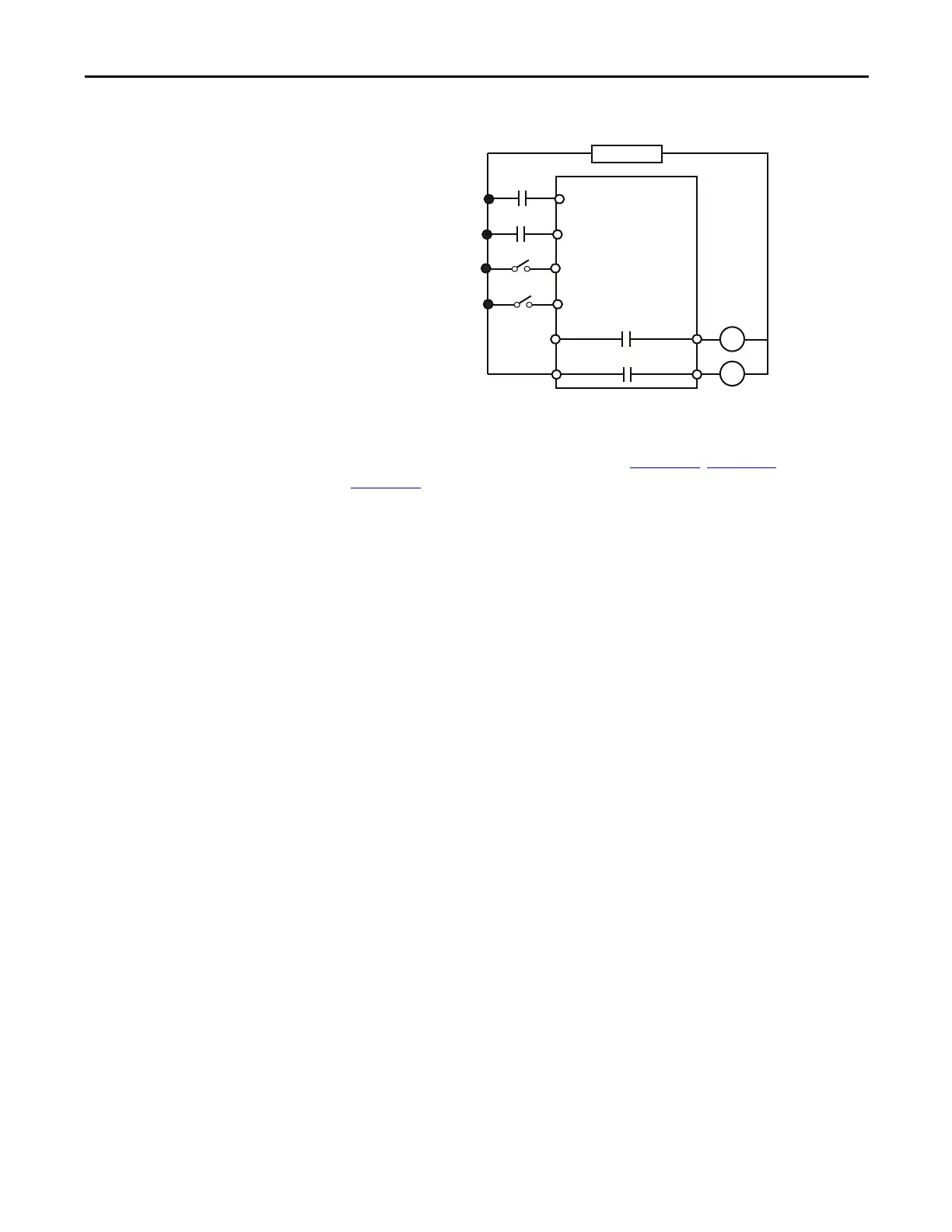

Figure 136 - Reversing Starter (Local I/O) – Two-wire Control with Feedback Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 137, Figure 138, and
Figure 139
is automatically loaded and enabled in the E300 on power-up or when
Operating Mode (Parameter 195) is set to a value of 41.
R13 R14
Relay 0
Run Reverse
E300
IN 1
Run Forward/Stop
Run Reverse Aux
Control Power
IN 2
IN 0
R03 R04
Relay 0
Run Forward
Run Forward Aux
IN 3
Run Reverse/Stop

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
