Chapter 5 Operating Modes
DeviceLogix Program
The DeviceLogix program that is shown in Figure 191, Figure 192, and
Figure 193
is automatically loaded and enabled in the E300 on power-up or when
Operating Mode (Parameter 195) is set to a value of 48.

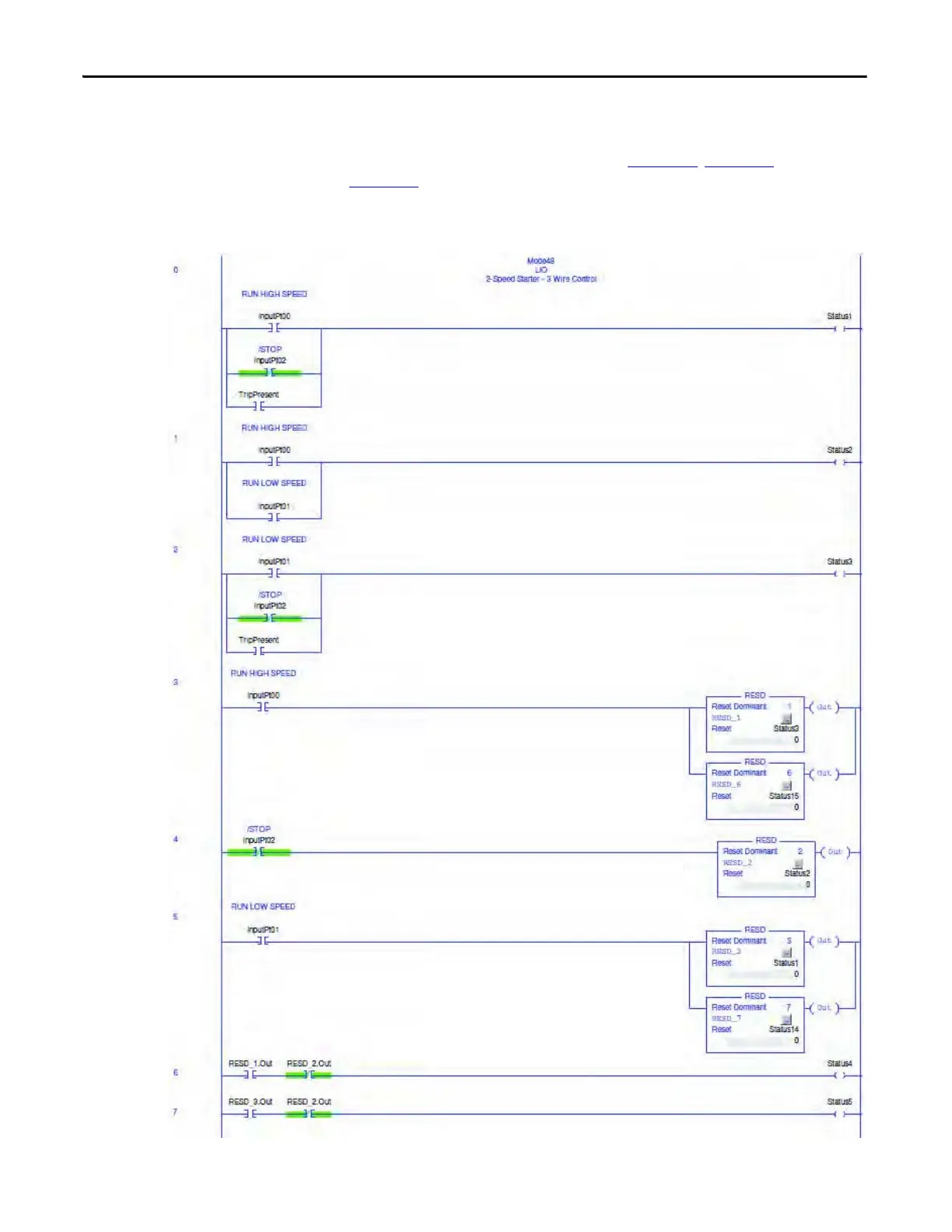

Figure 191 - Two-speed Starter (Local I/O) – Three-wire Control DeviceLogix Program, Part A
