Allen-Bradley E300 User Manual

292 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes
• Operator Station must be enabled in Mismatch Action
(Parameter 233)
• An
operator station must be selected in Operator Station Type
(Paramete
r 224)
Or
• Option Match Warning must be enabled in WarningEnableC
(Paramete
r 192)
• O
perator Station must be disabled in Mismatch Action
(Parameter 233)
• An
operator station must be selected in Operator Station Type
(Paramete
r 224)
7. Com
munication Fault & Idle Override (Parameter 346) must be enabled.
8. Network Fault Override (Parameter 347) must be enabled.
Wiring Diagram
The E300 relay’s Output Relay 0 and Output Relay 1 are wired as a control relays
in which the relay is controlled by the communication network or E300
Operator Station, and both output relays open when a trip event occurs.
Figure 195
is a wiring diagram of a two-speed starter with Output Relay 0 and
Output Relay 1 configured as control relays.

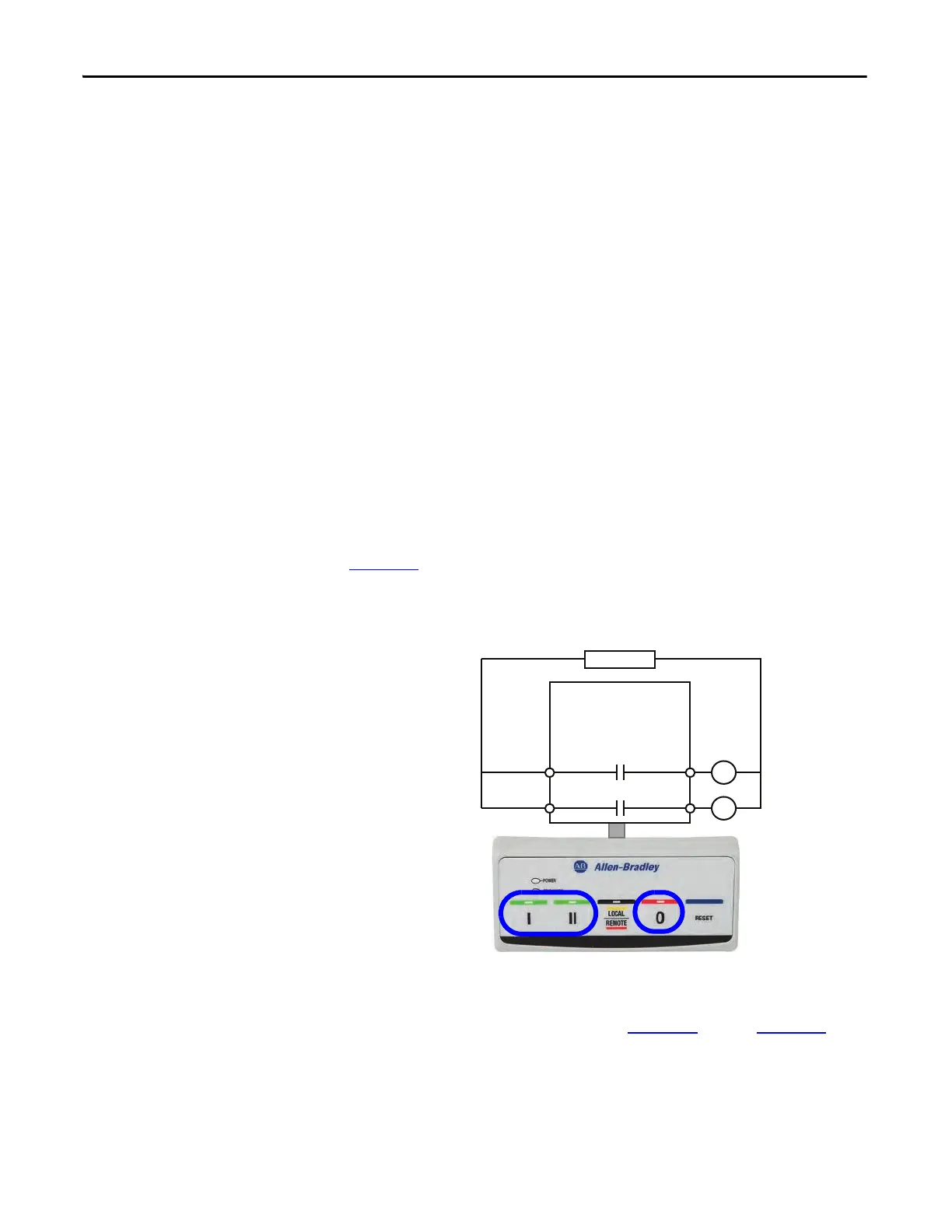

Figure 195 - Two-speed Starter (Network & Operator Station) Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 196 through Figure 199 is
automatically loaded and enabled in the E300 on power-up or when Operating
Mode (Parameter 195) is set to a value of 15.
R13 R14
Relay 1
Run Slow
E300
Control Power
I- Run Forward
0- Stop
II- Run Reverse
R03 R04
Relay 0
Run Fast

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
