Rockwell Automation Publication 193-UM015E-EN-P - October 2015 303
Operating Modes Chapter 5
DeviceLogix Program
The DeviceLogix program that is shown in Figure 205, Figure 206, and
Figure 207
is automatically loaded and enabled in the E300 on power-up or when
Operating Mode (Parameter 195) is set to a value of 25.

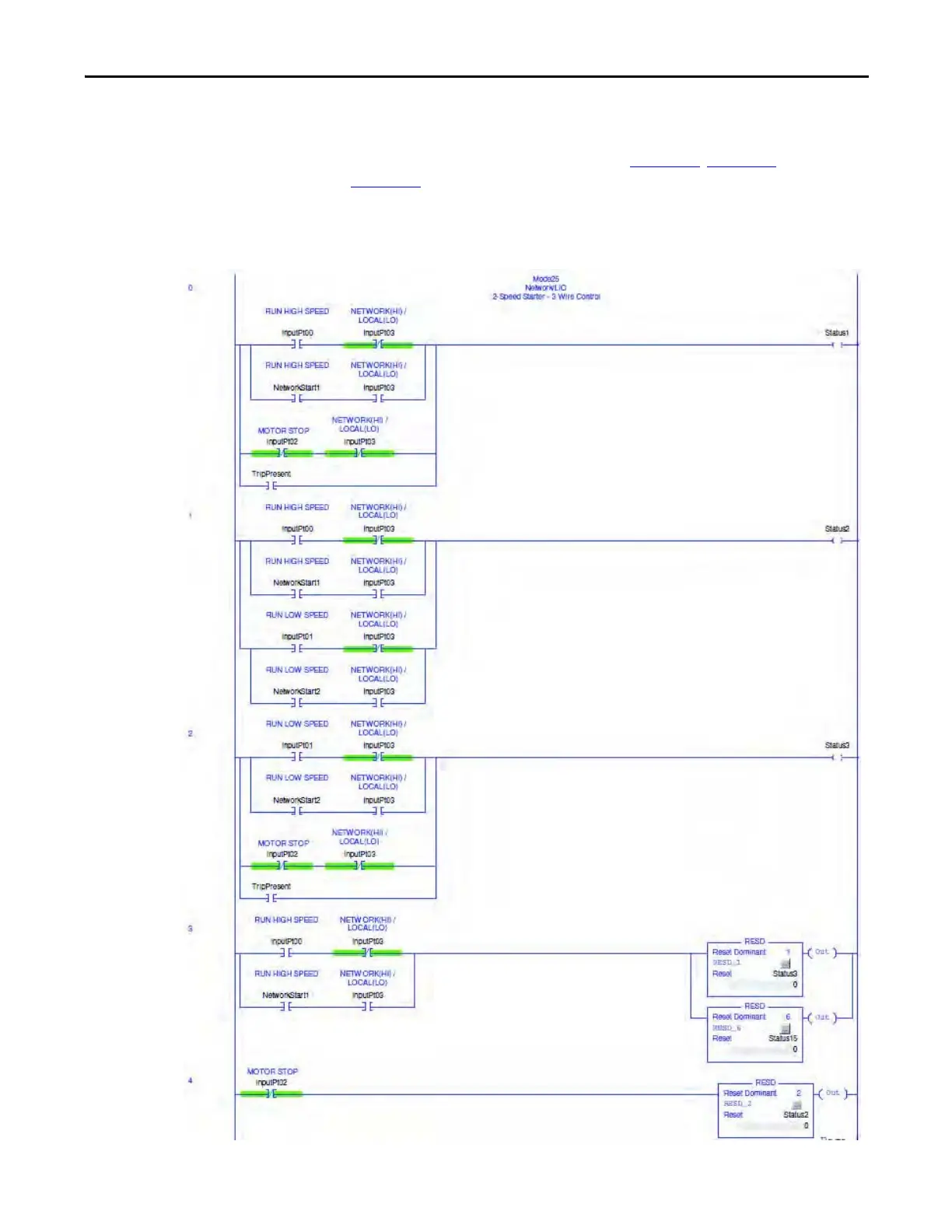

Figure 205 - Two-speed Starter (Network & Local I/O) – Three-wire Control DeviceLogix Program,
Part A
