Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 43
Installation and Wiring Chapter 2

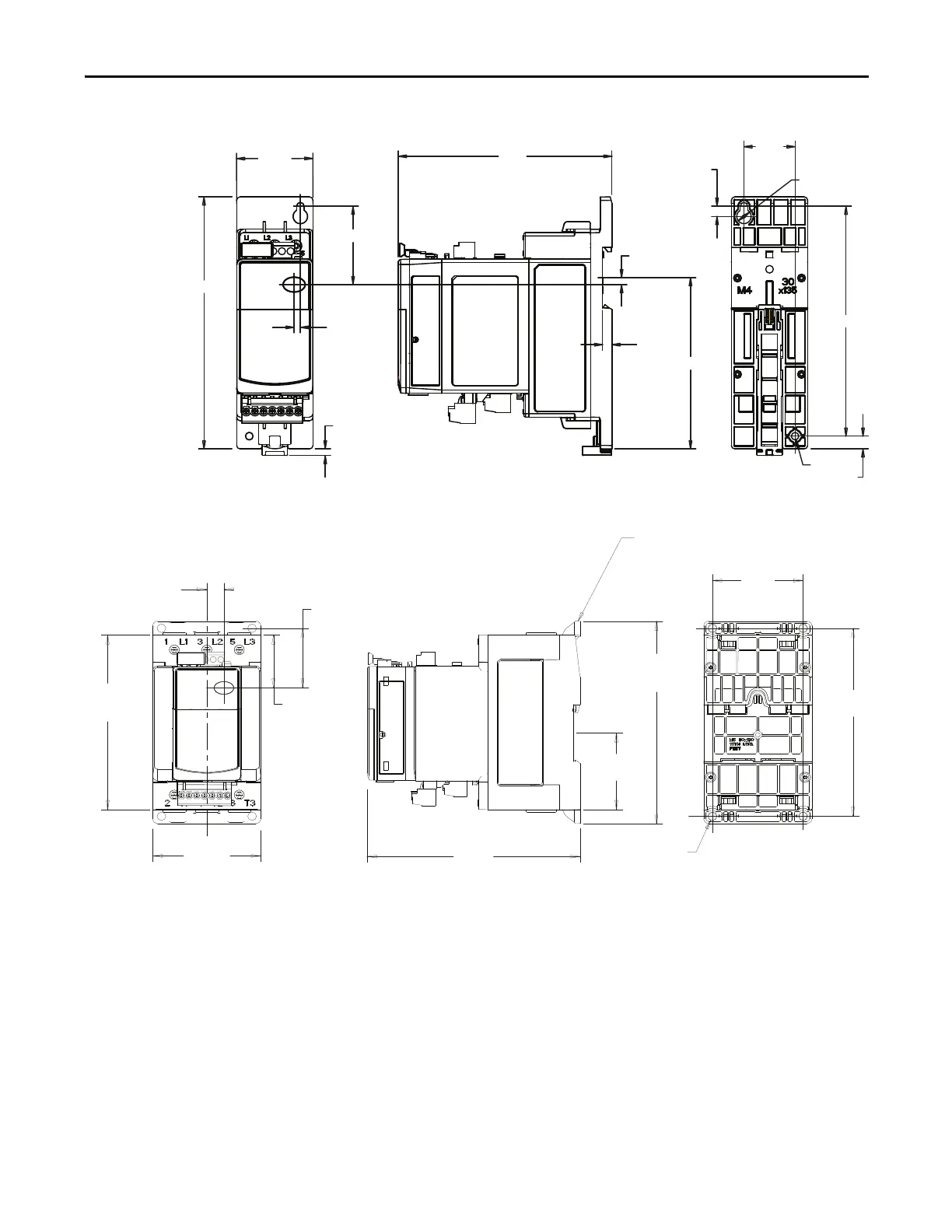

Figure 27 - E300 Sensing Module 193-ESM-___-30A-E3T and 193-ESM-___-60A-E3T
Figure 28 - E300 Sensing Module 193-ESM-___-100A-T
45
(1.764)
135 (5.32)
30
(1.18)
n 5 (0.17)
6 (0.24)
6 (0.217)
9 (0.33)
148 (5.83)
4 (0.154)
46 (1.81)
4 (0.14)
126
(4.94)
101 (3.96)
4 (0.16)
8 (0.30)
q
11.4
(0.45)
41.2
(1.62)
with feet
36.6
(1.44)
w/o feet
120.7
(4.75)
w/o feet
71.6
(2.82)
141
(5.55)
139.96
(5.51)
with feet
60
(2.36)
130
(5.12)
n 5.58
(0.23)
52.9
(2.08)
q
q
Shown with panel mount accessory feet
Cat. No. 193-ESM-SA-100

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
