Allen-Bradley E300 User Manual

594 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 10 EtherNet/IP Communication

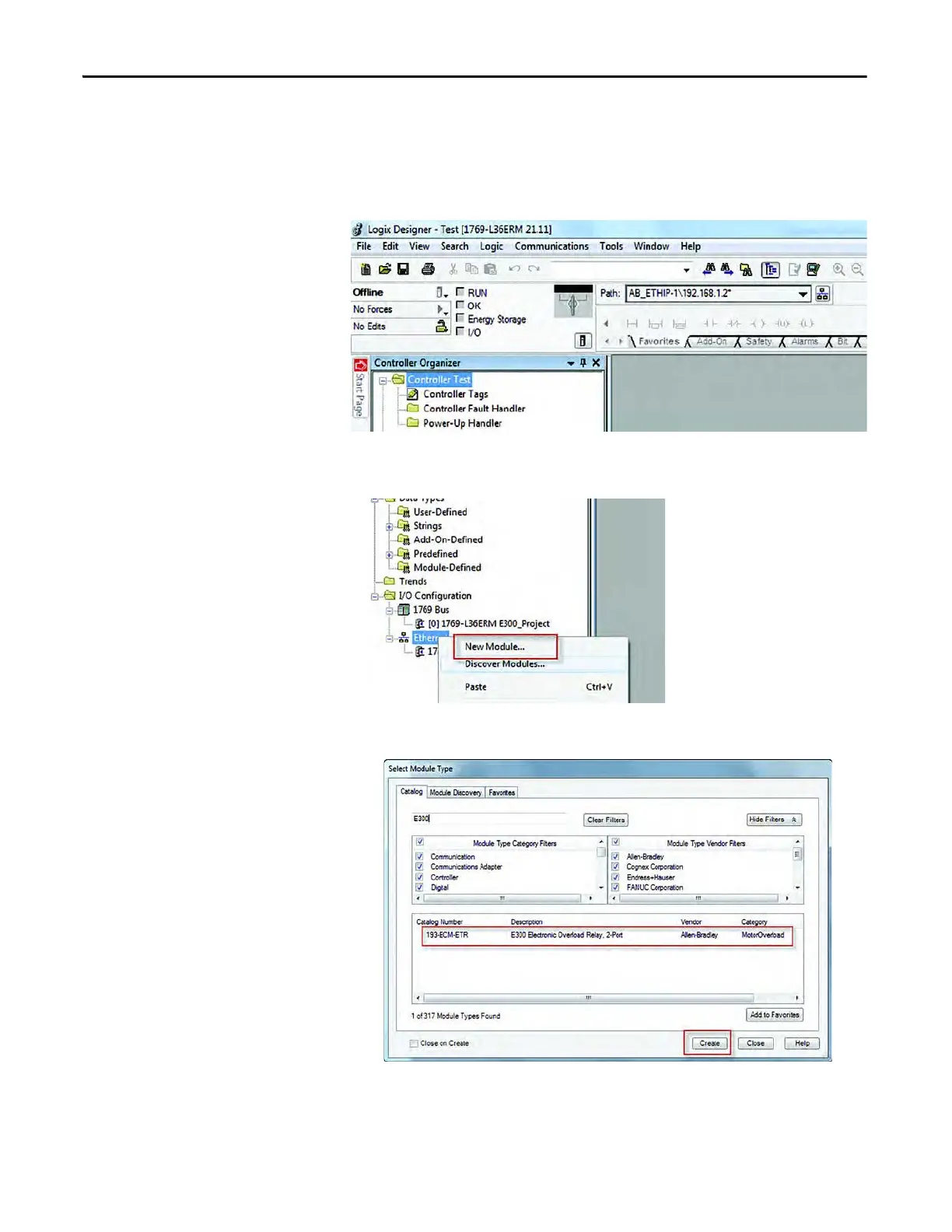

Follow the steps provided to integrate an E300 relay using the E300 Add-on
Profile to a Logix controller offline:
1. Create a new or open an existing RSLogix 5000 or Studio 5000 project
and verify that the Logix controller is offline.
2. Right-click on the EtherNet/IP scanner within the I/O Configuration
folder, then select New Module to open the Select Module Type window.
3. Select the E300 relay EtherNet/IP Communication Module (193-ECM-
ETR), then click Create.

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
