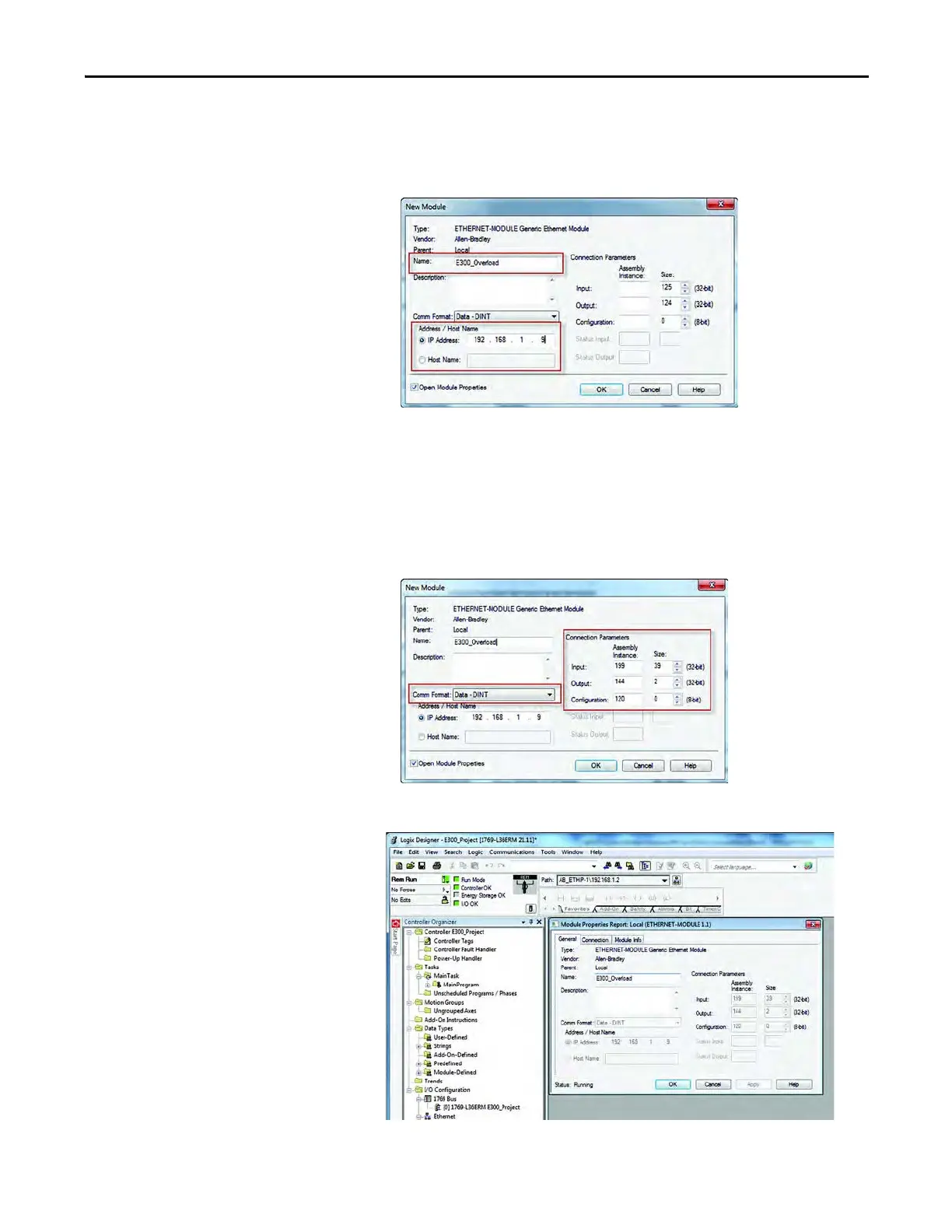

4. Enter a name and the IP address for the E300 relay EtherNet/IP
Communication Module. The name creates tags in RSLogix 5000 or
Studio 5000 that can be used to read and write data from the E300 relay
EtherNet/IP Communication Module.
5. Select Data-DINT for the Comm Format. The Data-DINT format
represents the data from the EtherNet/IP Communication Auxiliary E300
relay EtherNet/IP Communication Module as a collection of 32-bit
values. Set the I/O Assemblies to the following values:
• Input Assembly Instance 199 (Size 39)
• Output Assembly Instance 144 (Size 2)
• Configuration Assembly Instance 120 (Size 0)
6. Download the project to the controller and go online.

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
