Barco HDF W series Service Manual

6. Removal and installation of the projector covers
6.3 Removal of the lamp cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7mmflat screw drive r.

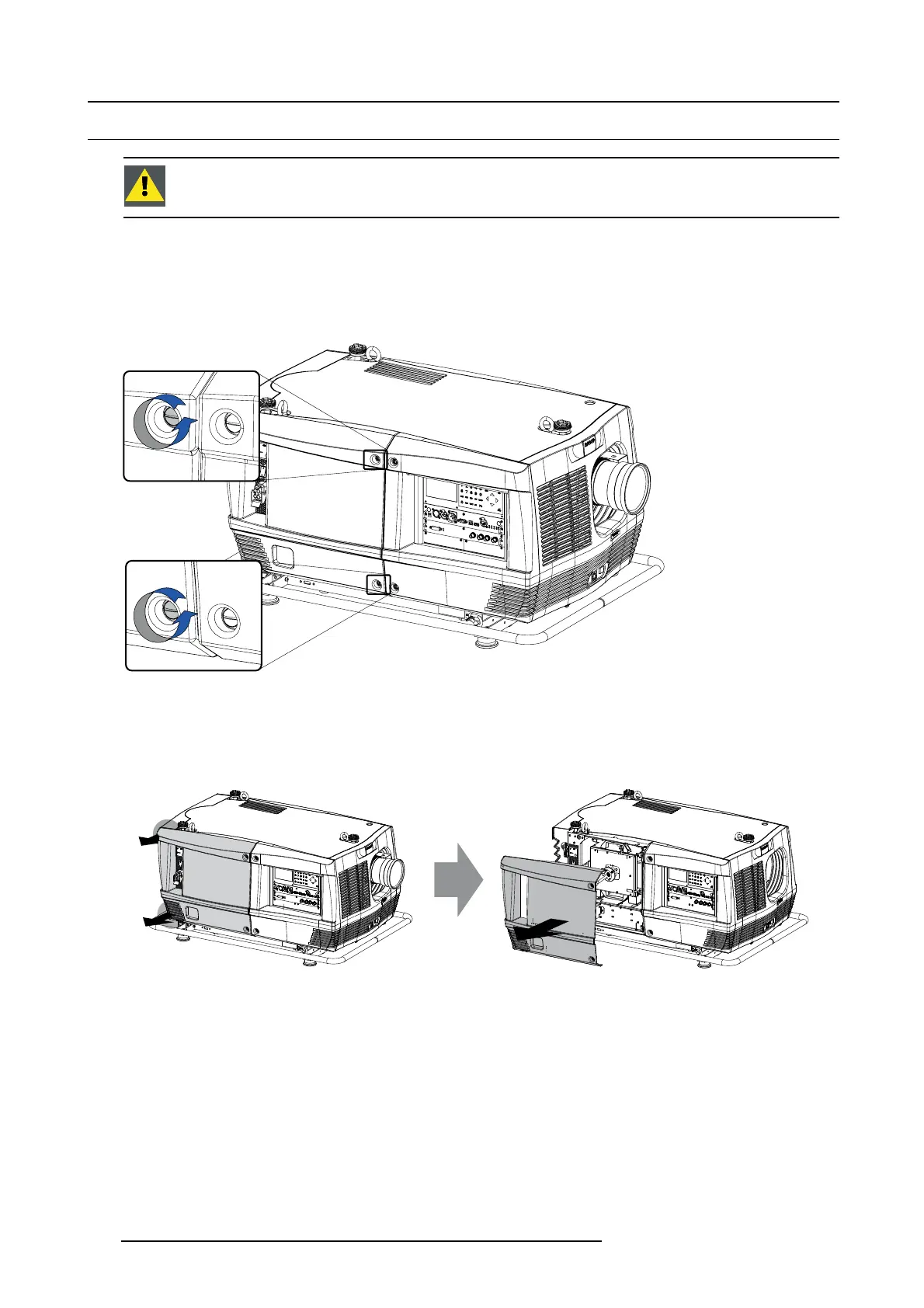

How to remove the lamp cover
1. R elease the two captive screws at the top and bottom r ight side of the lamp cover, using a flat screw driver.
Image 6-5
Captive screws, unlocking
2. R emov e the lamp cover from the projector as follows:
a) gently pull out the left bottom corner (A) of the lamp cover,
b) then gently pull ou t the left top corner (B) of the lamp cover,
c) then move the lamp cover away from the projector (C).
B
A
C
Image 6-6
Lamp cover remova l
100 R5905312 HDF W SERIES 24/01/2013
