10. Card Cage
10.10 Replacing the Warp module
This procedure assumes that the Input & Communication unit is already removed from the projector.
Necessary tools
T10 Torx drive r.
How to replace the Warp module?
1. R emov e the complete PMP board assembly from the Input & Comm unication unit. See first steps of the service procedure
"Replacing the PMP board", page 156.
2. R eplace the Warp m odule from the PMP board a ssembly. Use a T10 Torx driver to loos en/fasten the four screws (reference 4) .

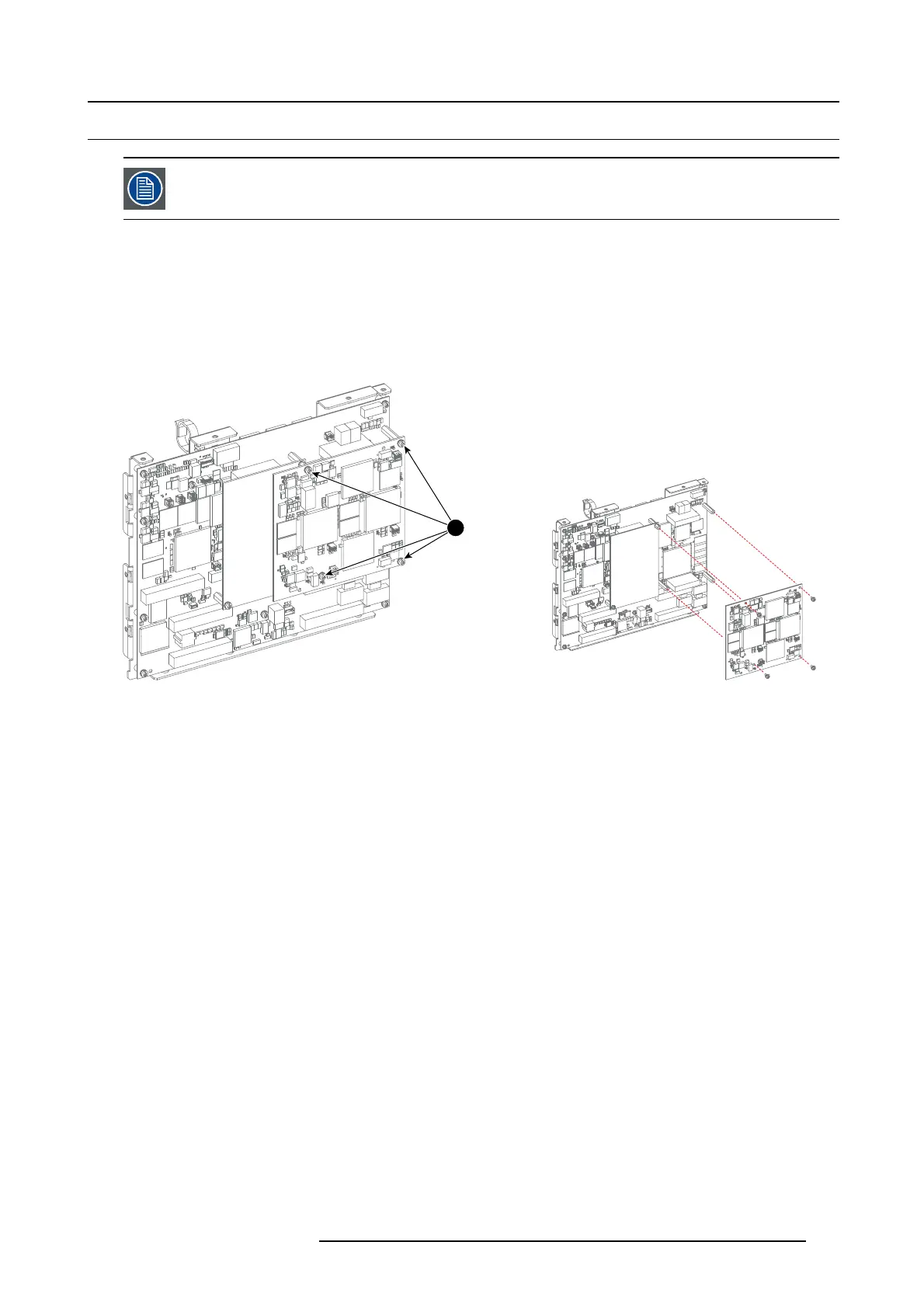

4
Image 10-27
3. Install the complete PMP board a ssem bly bac k on the Input & Communication unit. S ee ser vice procedure "Replacing the PMP
board", page 15 6.
R5905312 HDF W SERIES 24/01/2013
159
