Barco HDF W series Service Manual

13. HDF Light Processor
13.12 Converging the green pattern onto the blue pattern
This adjustment procedure assumes that the projector is prepared for convergence adjustment..
Necessary tools
No tools.
How to converge the green pattern onto the blue pattern?

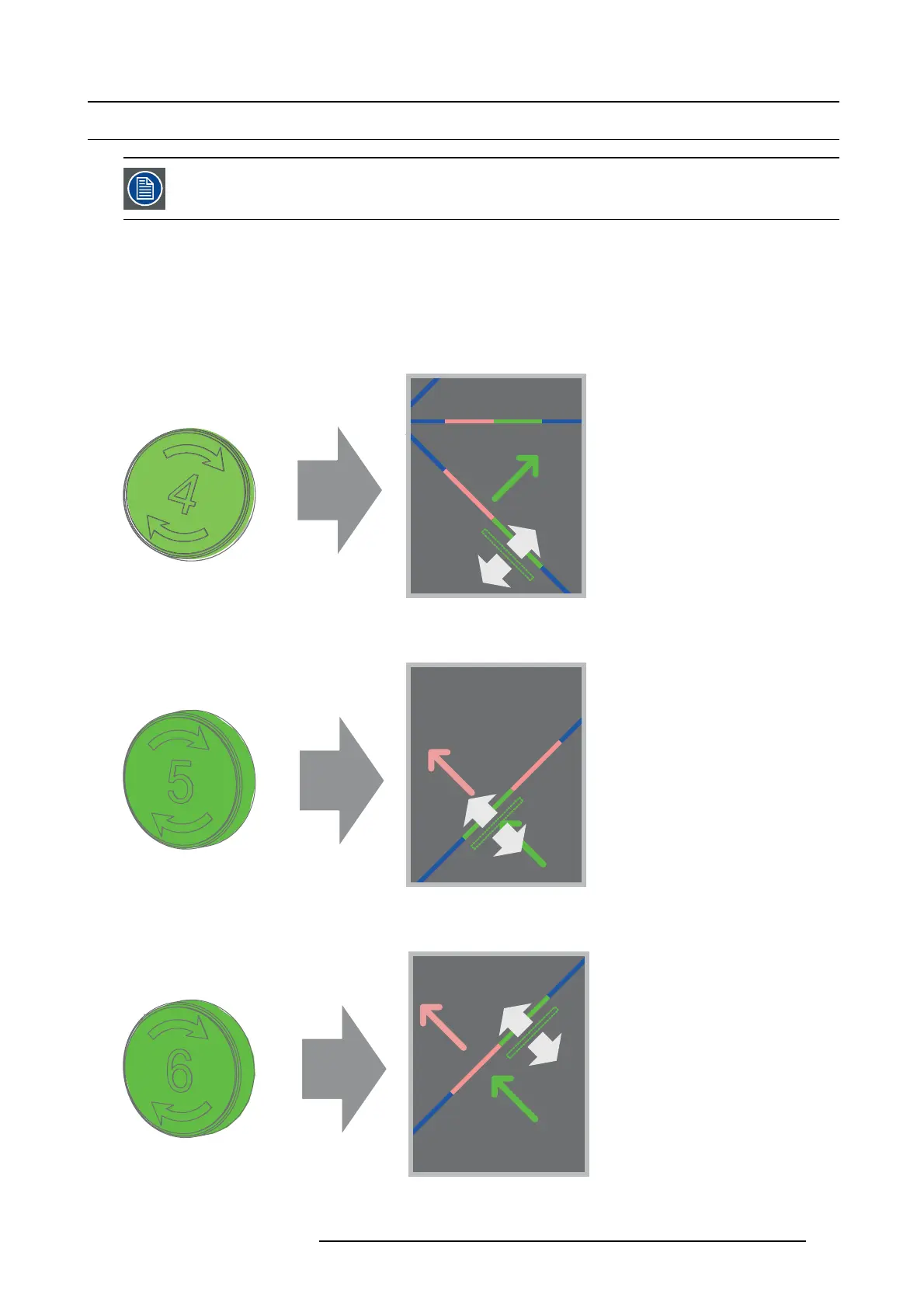

1. S lightly turn the green colored control knob nu mber 4 until the green pattern in the center of the projected image converges with
the blue pattern. Note that a turn of a few degre es c orresponds with one full pixel. T he direc tion on the c ontrol knob corresponds
with the direction of the arrow of the test pattern.
4
Image 13-29
2. S lightly turn the green colored control knob number 5 until the green pattern in the lower left of the projected image converges
with the blue pattern.
2
5
Image 13-30
3. S lightly turn the green colored con trol knob number 6 un til the green pattern in the upper right of the projected im age c onverges
with the blue pattern.
3
6
Image 13-31
4. R epeat step 3 and 4 until coincidence is o btained of the gre en pattern in the lower left and upper right of the projected image.
R5905312 HDF W SERIES 24/01/2013
213
