Barco HDF W series - Removing the Mains Switch

7. Power Input
7.5 Removing the mains switch
Necessary tools
• Screwdriver 7 mm
• Allen key 2.5 mm
How to remove the mains switch
1. R emov e the indicated connection sc rews at the bac k side of the ma ins switch and slide off the eye connectors.
Do not dr op the washers inside the projector.

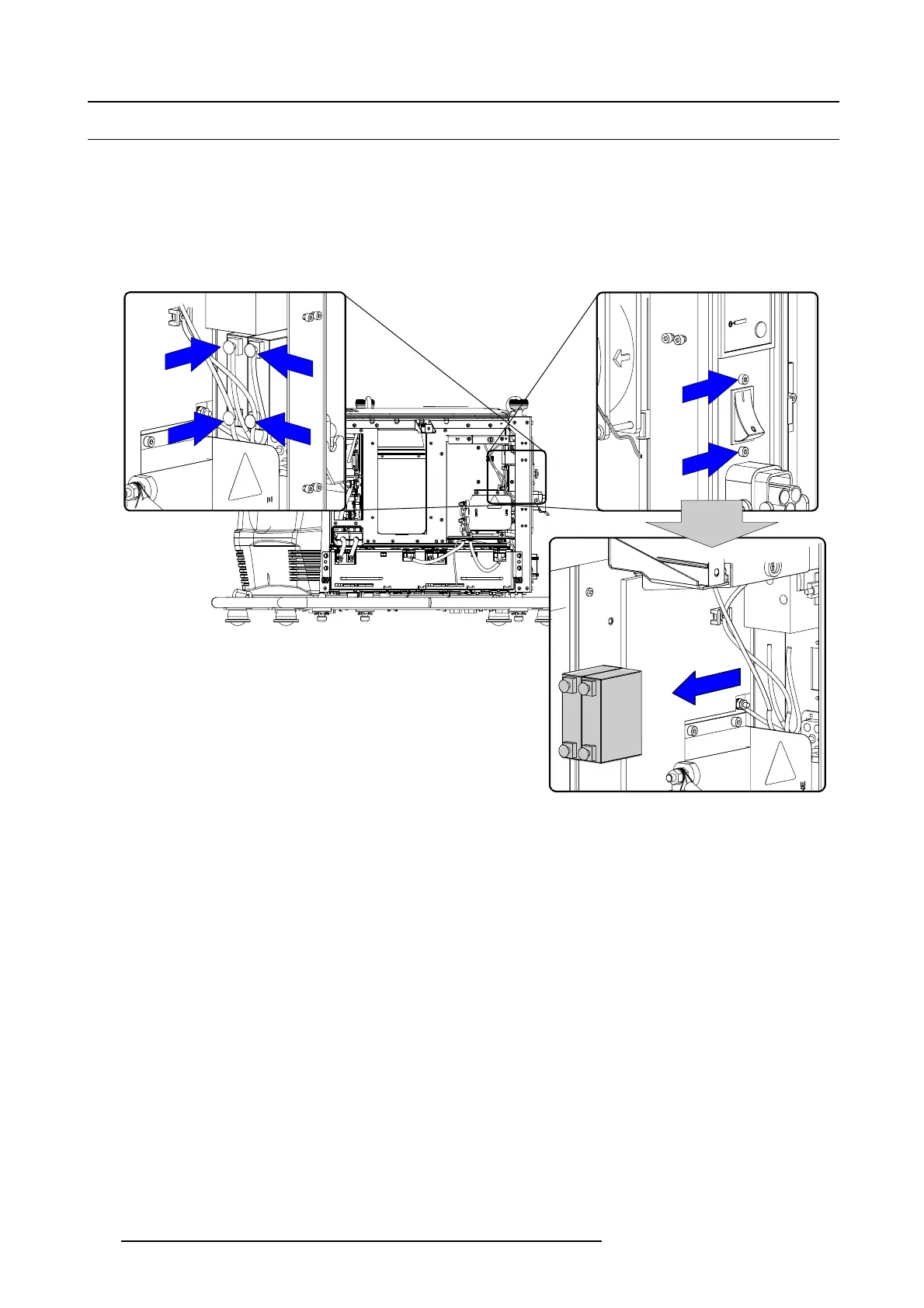

Image 7-9
Mains switch replacement
2. Turn out both screws on the front side of the mains switch.
3. S lide out the mains switch.
114
R5905312 HDF W SERIES 24/01/2013
