16. Heat exchanger
16.4 Mounting the heat exchanger assembly into the projector
Necessary tools
• 2,5 mm Allen key.
• 7 mm wr ench.
• Universal plier.
How to mount heat exchanger assembly into the projector?

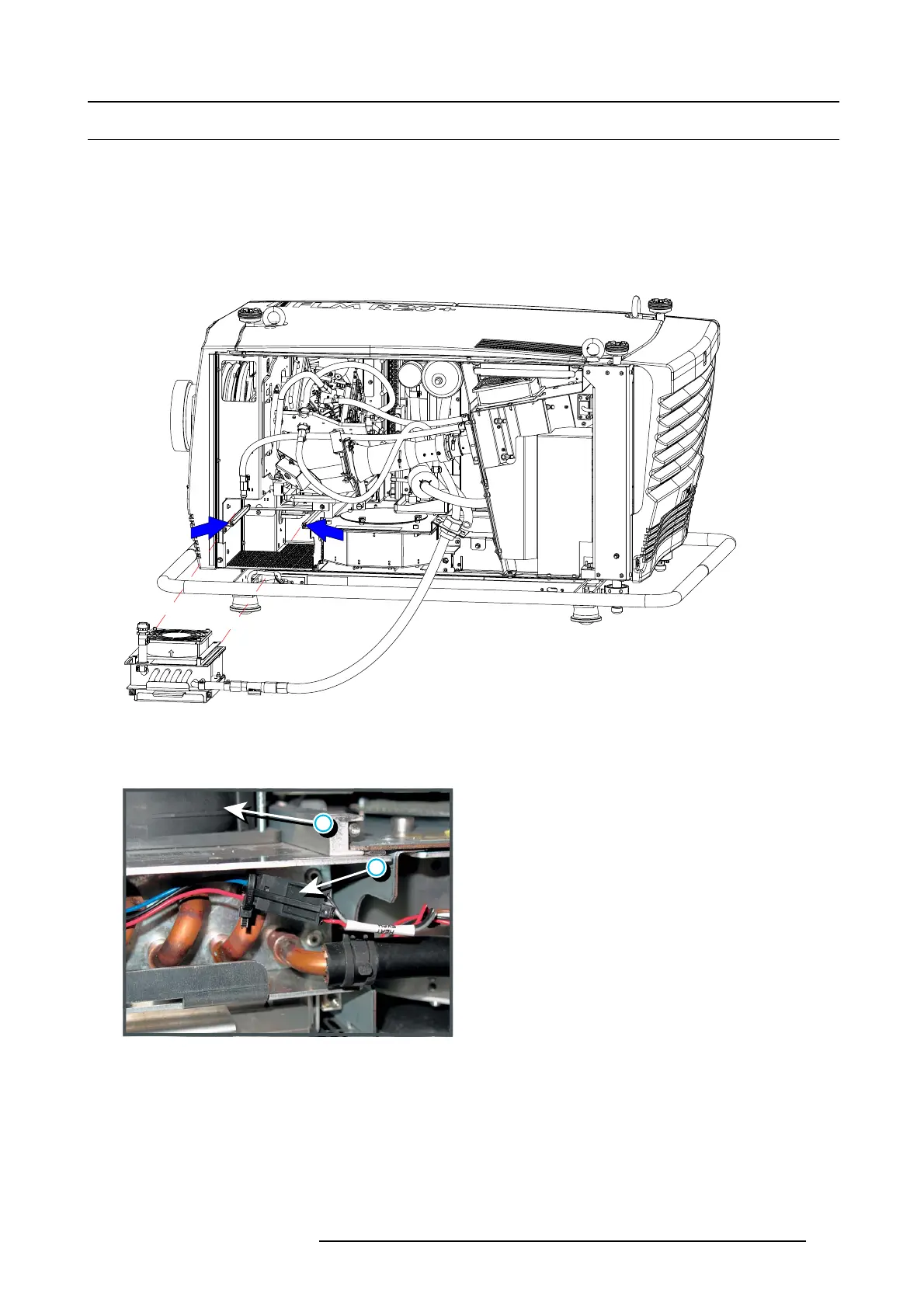

1. S lide the heat exchanger assembly into the projector. M ake sure the guides m atch the grooves of the as sem bly.
Image 16-11
2. Fas ten both screws.
3. R einstall the electrical connection (2).
1
2
Image 16-12
4. C ouple up the hose coming from the light pipe entrance to the heat exchanger.
R5905312 HDF W SERIES 24/01/2013
275
