2. General

2.2 Location of the main components of the projector

Housing

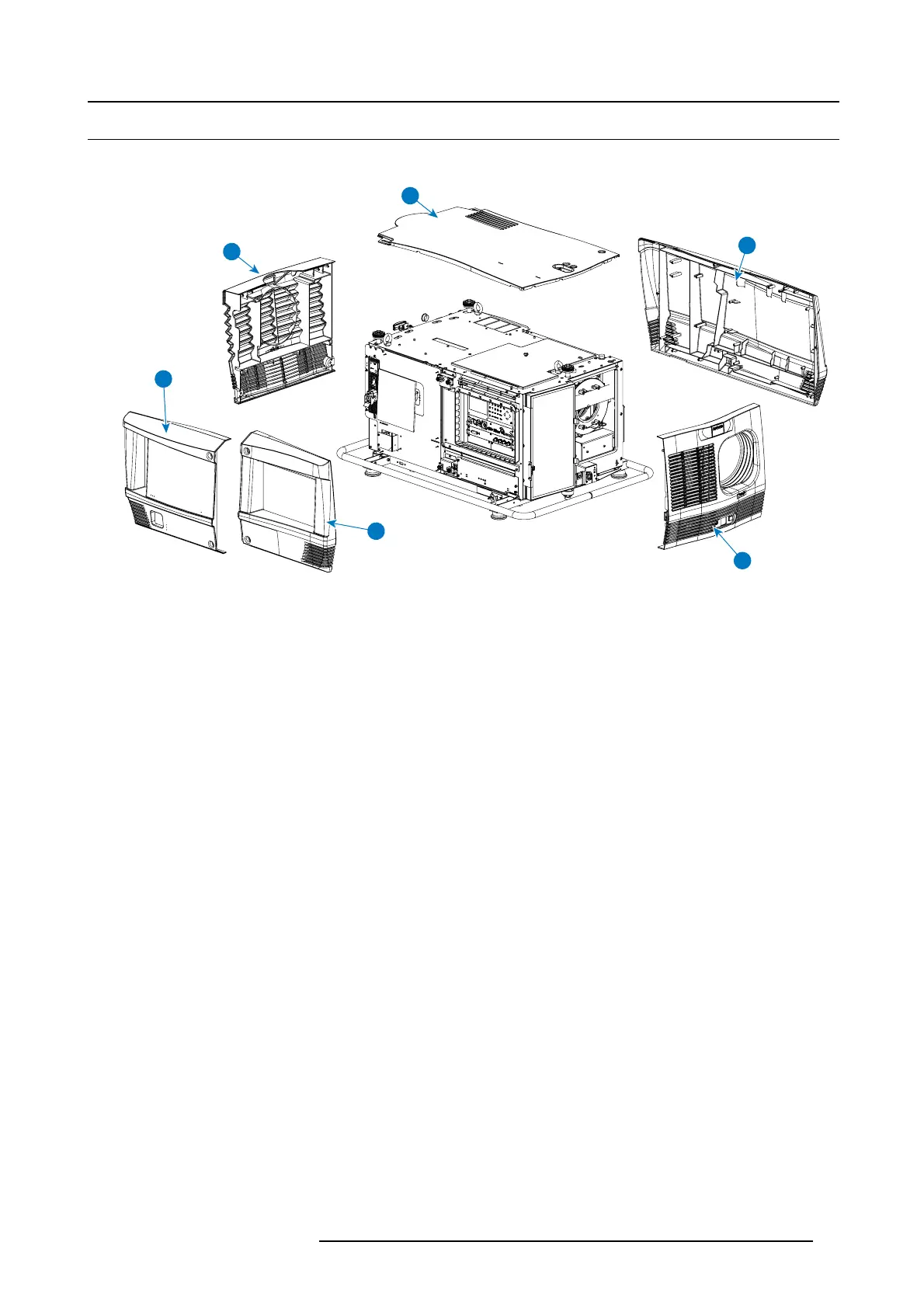

Image 2-2

1 Rear cov er

2Topcover

Side cover (side light p rocessor)

4 Front cover

Input & co mm unication cover

6 Lamp cover

R5905312 HDF W SERIES 24/01/2013
