17. Board replacement procedure
17.3 Connections on the Power distribution board
Overview
All sockets are c olor labeled. Som e plugs of the w ire units are also color labeled and correspond with the color labeling on the
sockets. Other wire units have uniform colored wires which corresponds with the color labeling on the so ckets on the boar d.
Plugs that cannot be inserted in a wrong position are not marked.

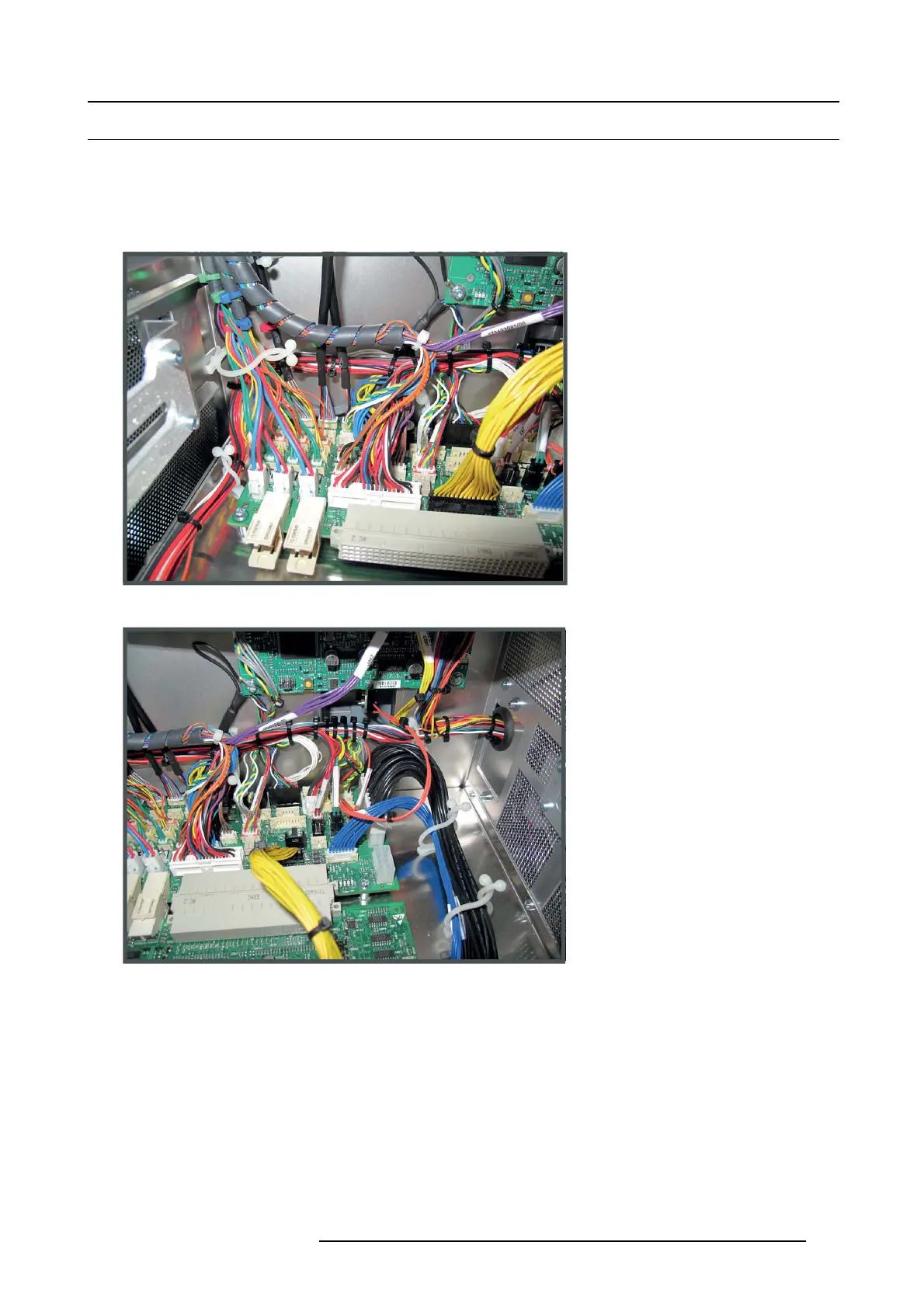

Image 17-5
Image 17-6
R5905312 HDF W SERIES 24/01/2013 281
