16. Heat exchanger
16.2 Disassembling the heat exchanger assembly
How to disassemble

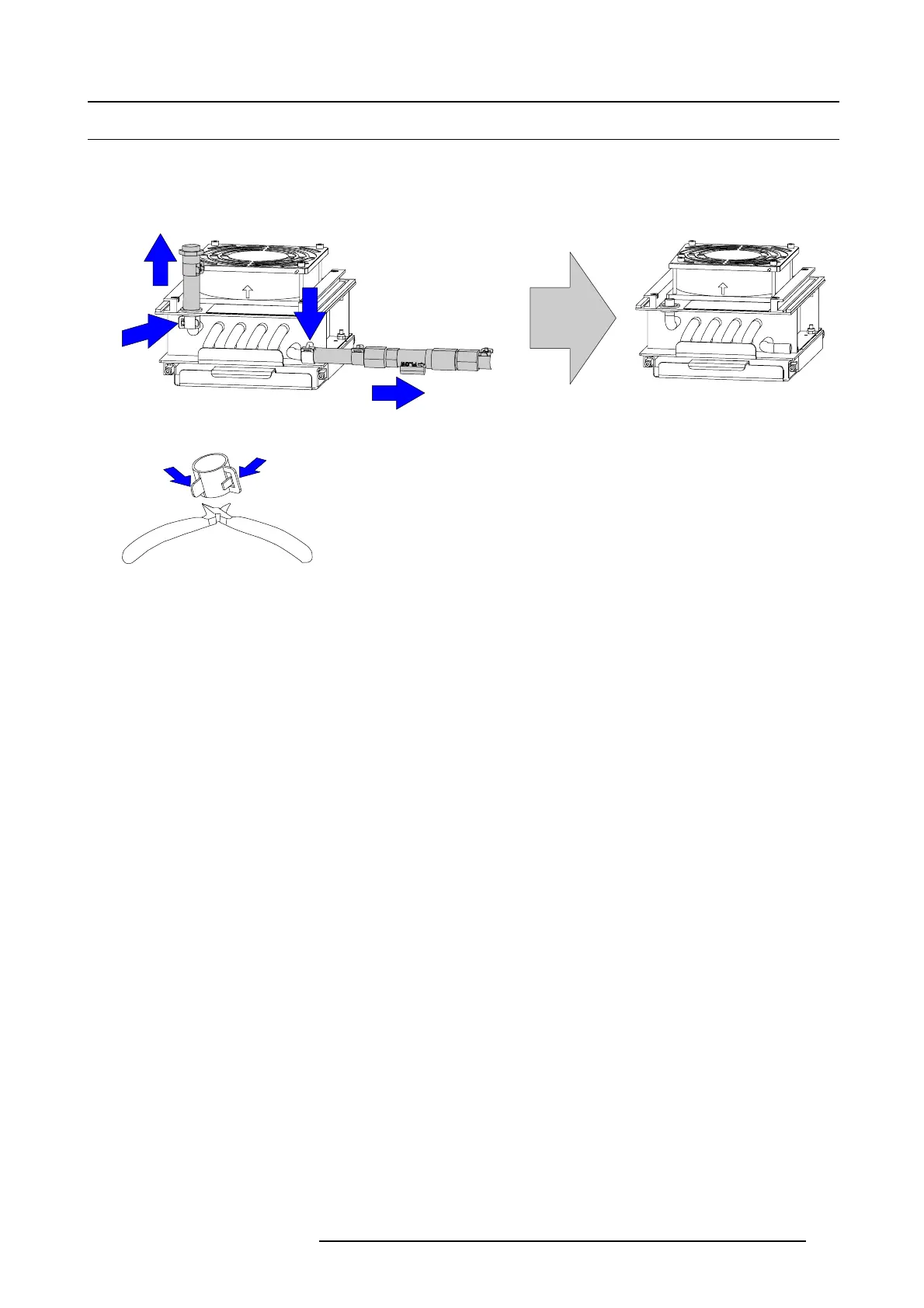

1. R emov e both indicated clips (1 & 3) with a universal plier. Pus h both c lip tongs to eac h other in order to open the clip and move
the clip away from the hose (when releasing the both clip tongs, it camps again.
1
2
3
4
Image 16-6
Image 16-7
2. Pull off both tube assembly (2 & 4).
3. L oosen on both sides the nuts holding the fan assembly to the heat exchanger.
R5905312 HDF W SERIES 24/01/2013
271
