Barco HDF W series Service Manual

14. Lenses and Lens Holder
14.1 Introduction Lens Holder
Lenses and Lens Holder
Next to securing the Lens, the Lens Holder makes it poss ible to shift, tilt and swing the lens plane with respect to the DMD plane
of the projector. T his adjus tment m echa nism e nsures that the projected im age can be perfectly focused on the screen. The motors
required for horizontal and vertical shift are built-in in the Lens Holder. The Lens Holder always has an electrical socket for the zoom
and focus functionality of the m otorized Len s.

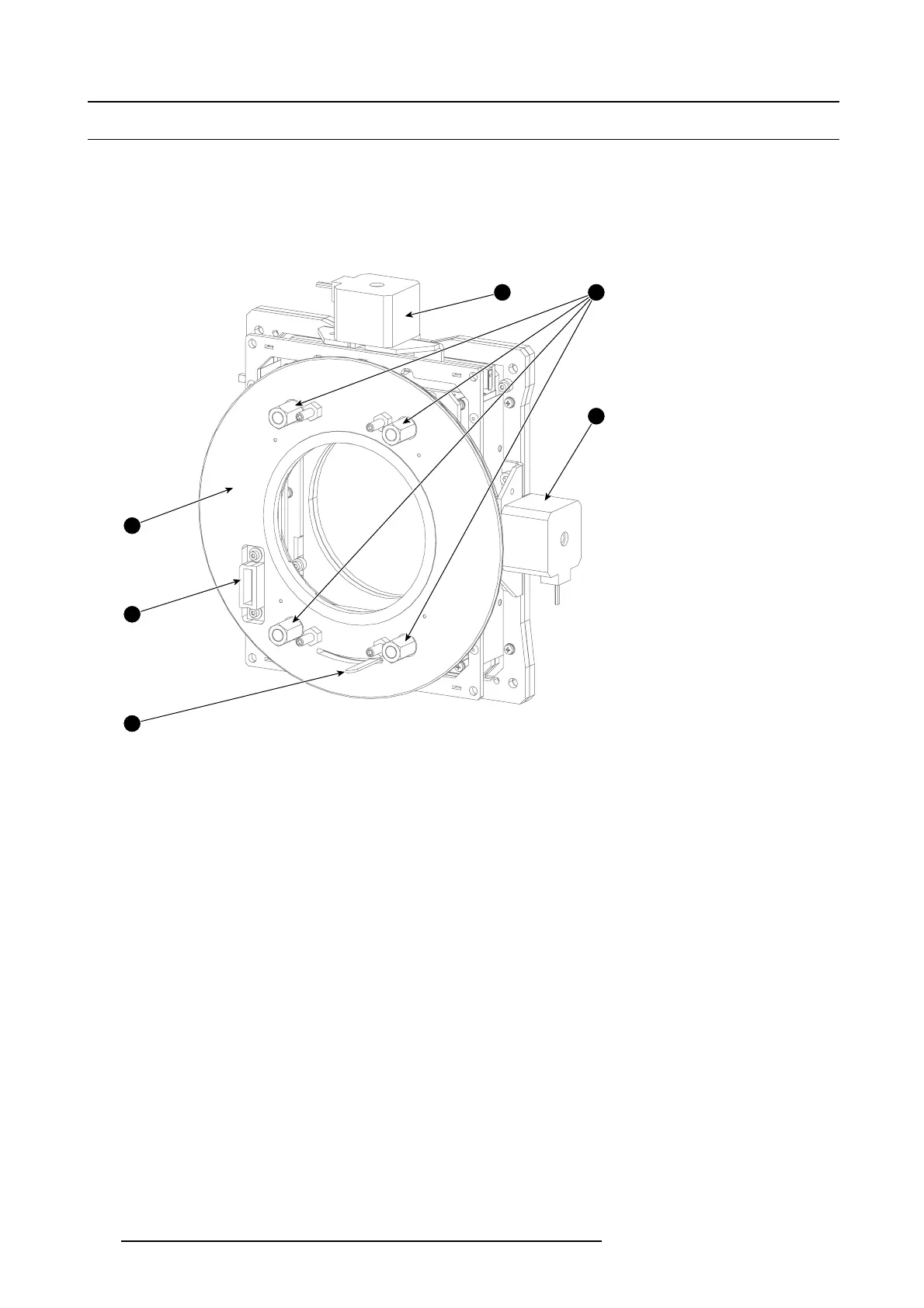

Parts identification of the Lens Holder
54
1
6
2
3
Image 14-1
1 Lens Holder front plate.
2 Electrical socket Lens connection.
3 Lens lock handle.
4 Lens Holder Vertical Shift motor.
5 Adjustment screw Lens Holder front plate (Scheimpflug).
6 Lens Holder Horizontal Shift motor.
216 R5905312 HDF W SERIES 24/01/2013
