Barco HDF W series Service Manual

13. HDF Light Processor
13.10 Convergence controls

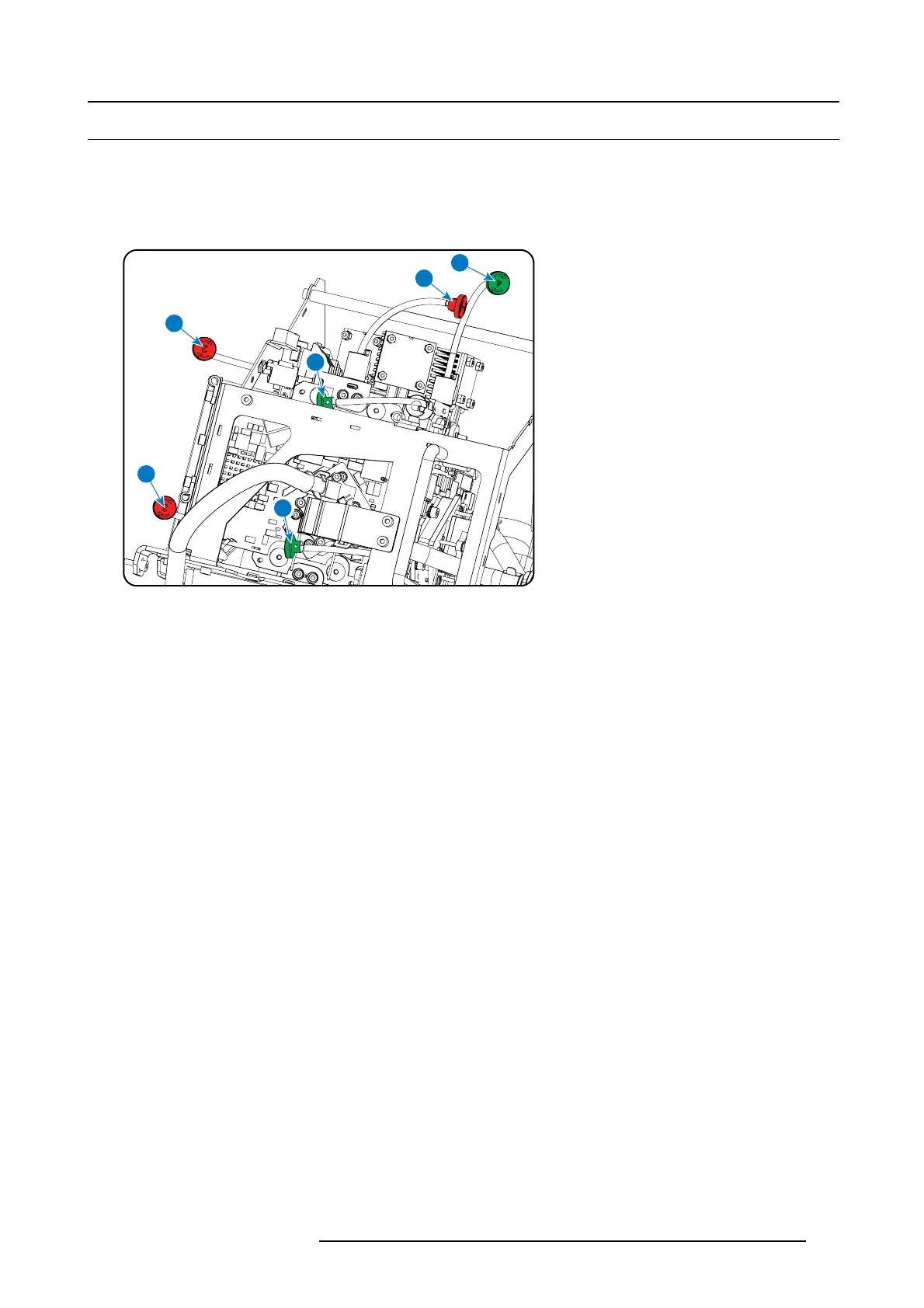

Extended control knobs
As the DMD of the blue channel is not ac cessible in the projector, the image of this DMD will be taken as reference. R ed an d green
will be aligned on blue when a small convergence drift is recognized. So, the DMD of the blue channel is fixed and can not be
adjusted. The red and green channel have pivot plates equipped with three extended control knob s for convergence adjustment.
The adjustment knobs are num bered from 1 to 6 and have the same color as the c hannel which they effect.
1
5
6
4
2
3
Image 13-24
1 Red channel, knob num ber 1.
2 Red channel, knob num ber 2.
3 Red channel, knob num ber 3.
4 Green channel, knob number 4.
5 Green channel, knob number 5.
6 Green channel, knob number 6.
R5905312 HDF W SERIES 24/01/2013 209
