Barco HDF W series Service Manual

6. Removal and installation of the projector covers

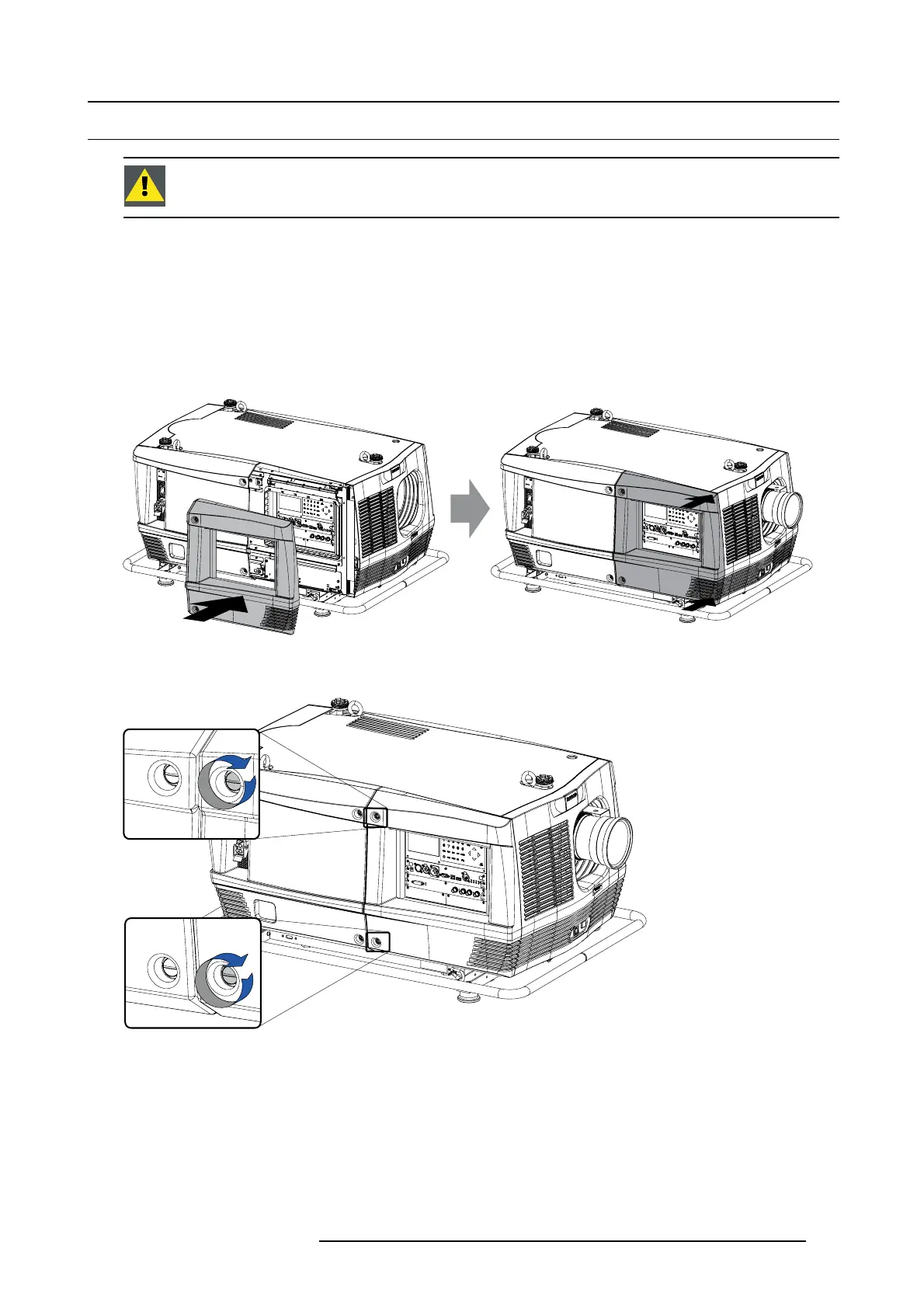

6.8 Installation of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7mmflat screw drive r.
How to install the input cover
1. Install the input cover of the projector as follows:
a) Bring the input cover towards its final position (A),
b) then ge ntly push the locking stud at the right top corner (B) into its receiver,
c) then gently pus h the locking stud at the right bottom c orner (C) into its receiver.
B
C
A
Image 6-16
Input cover, installation
2. S ecure the input cover by locking the two captive screws at the left side of the input cover.
Image 6-17
Captive screws, locking
R5905312 HDF W SERIES 24/01/2013 105
