Barco HDF W series Service Manual

13. HDF Light Processor
13.7 Light Sensor module replacement
WARNING: Disconnect the power cord from the projector and wait a few minutes (to discharge the capacitors)
prior to start with this procedure.
Preparation
Light processor side cover of the projector must be removed before starting the light sensor module replacem ent..
Necessary tools
•7mmflat screwdriver.
• T10 Torx driver.
How to replace
1. D isconnect the light sensor cable (reference 1 image 1 3-19).
1
2
2

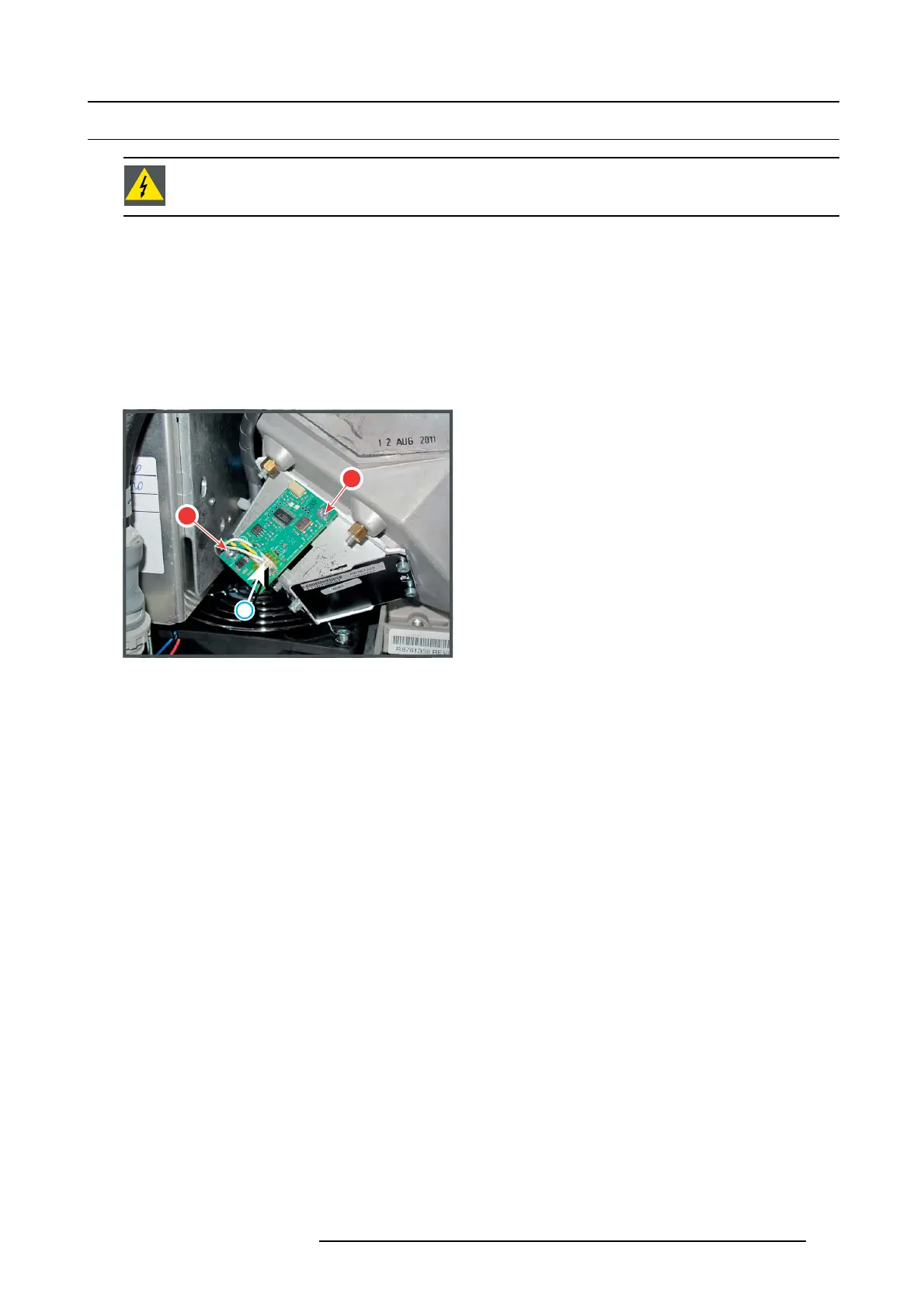

Image 13-19
2. Turn out both screws (reference 2 image 13-19) and take off the light sensor module.
3. P lace a new module on the light p ipe sockets and drive in bo th fixation sc rews (reference 2 image 13-19).
4. P lug in the cable into the light sensor module socket (reference 1 image 13-19).
R5905312 HDF W SERIES 24/01/2013
205
