Barco HDF W series Service Manual

10. Card Cage
10.6 Removal of the intermediate board guidance
This procedure assumes that the Input & Communication Unit is removed from its compartment.
How to remove the intermediate board guidance?
1. R emov e the Input & Com munication Unit from its compartment. See instructions above.
Note: It is not necessary to disconnect the electrical wires. The Input & Comm unication Unit can be placed near the pr ojector.

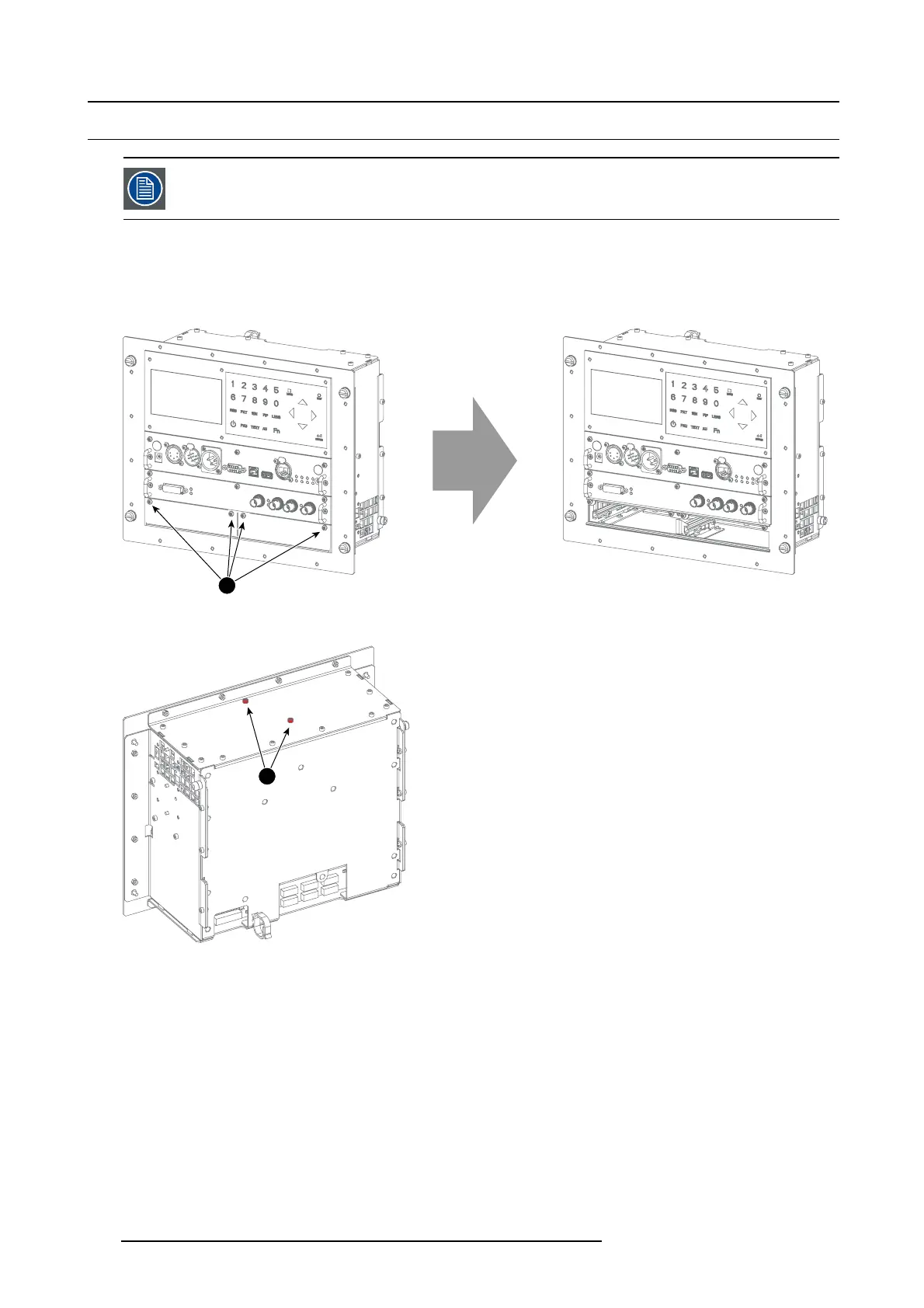

2. R emov e the 2 free input slot covers by removing the 4 screws (reference 1, image 10-6).
1
Image 10-6
3. R emov e the 2 screws (reference 2, image 10-6) on the bottom side of the Input & C om munication Unit.
1
Image 10-7
4. R emov e the intermediate board guidance (reference 3, image 10-6).
148
R5905312 HDF W SERIES 24/01/2013
