12. Start Pulse Generator
11
1

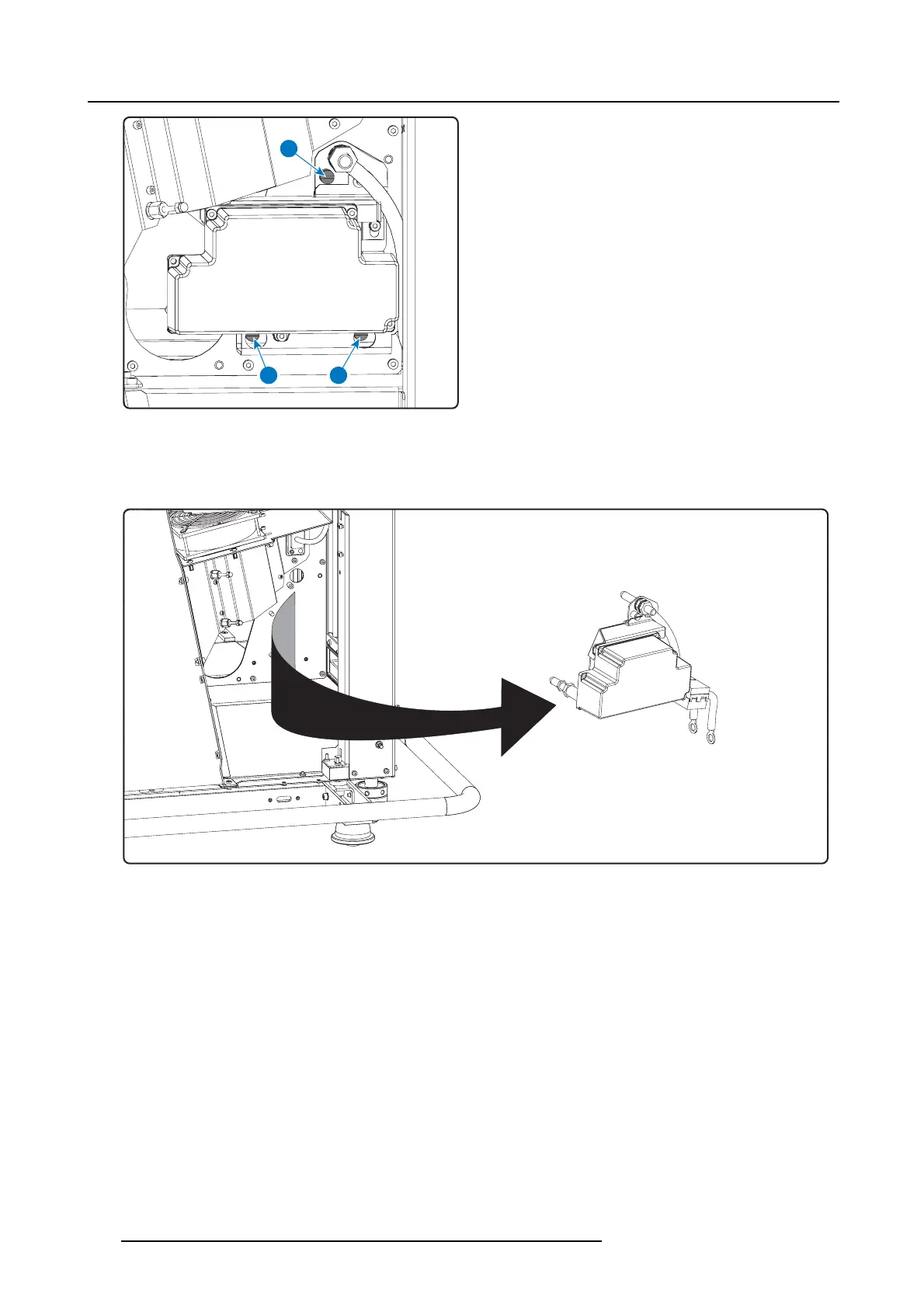

Image 12-4
SPG fixation screws
4. R emov e the start pulse generator from the projector.
Caution: Do not damage the ferrite blocks while removing the SPG m odule.
Note: The ferrite blocks have to be reused upon the S PG m odule which you want to install.
Image 12-5
Remove SP G
