13. HDF Light Processor
1
2
3
Image 13-4
5. Turn out the hexagon head screw at the left side of the light processor (3).

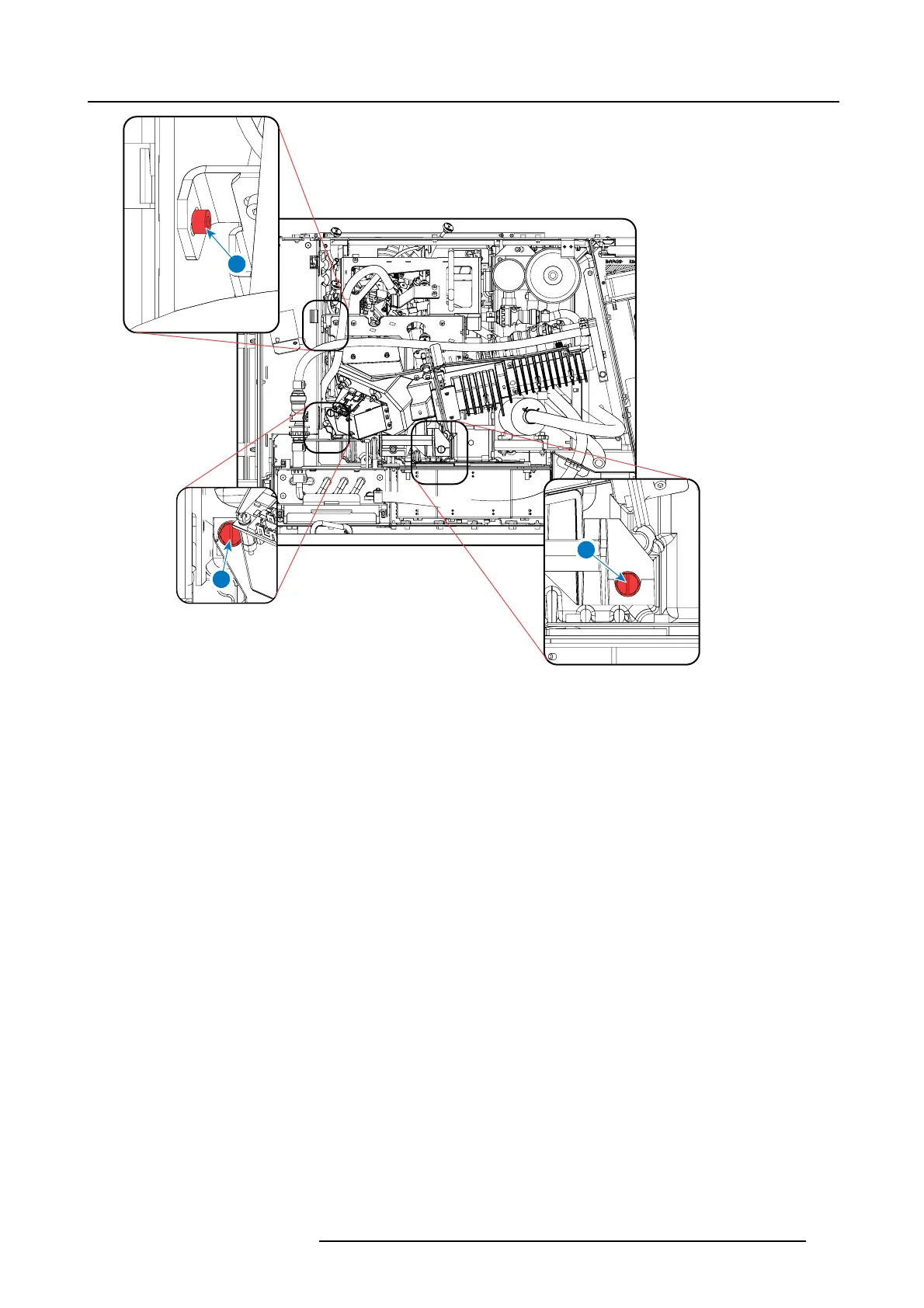

6. Interrupt the liquid cooling circuit by uncoupling both valved fittin g. O nce valved fitting is located in the tube coming from the
pump and leading to the light pro cessor. The second va lved fitting is located in the tube com ing from the light pipe entrance and
leading to the heat exchanger.
To interrupt a valved fitting, press on the knob (1) and pull out the connector (2).
R5905312 HDF W SERIES 24/01/2013
193
