13. HDF Light Processor
1
2
3

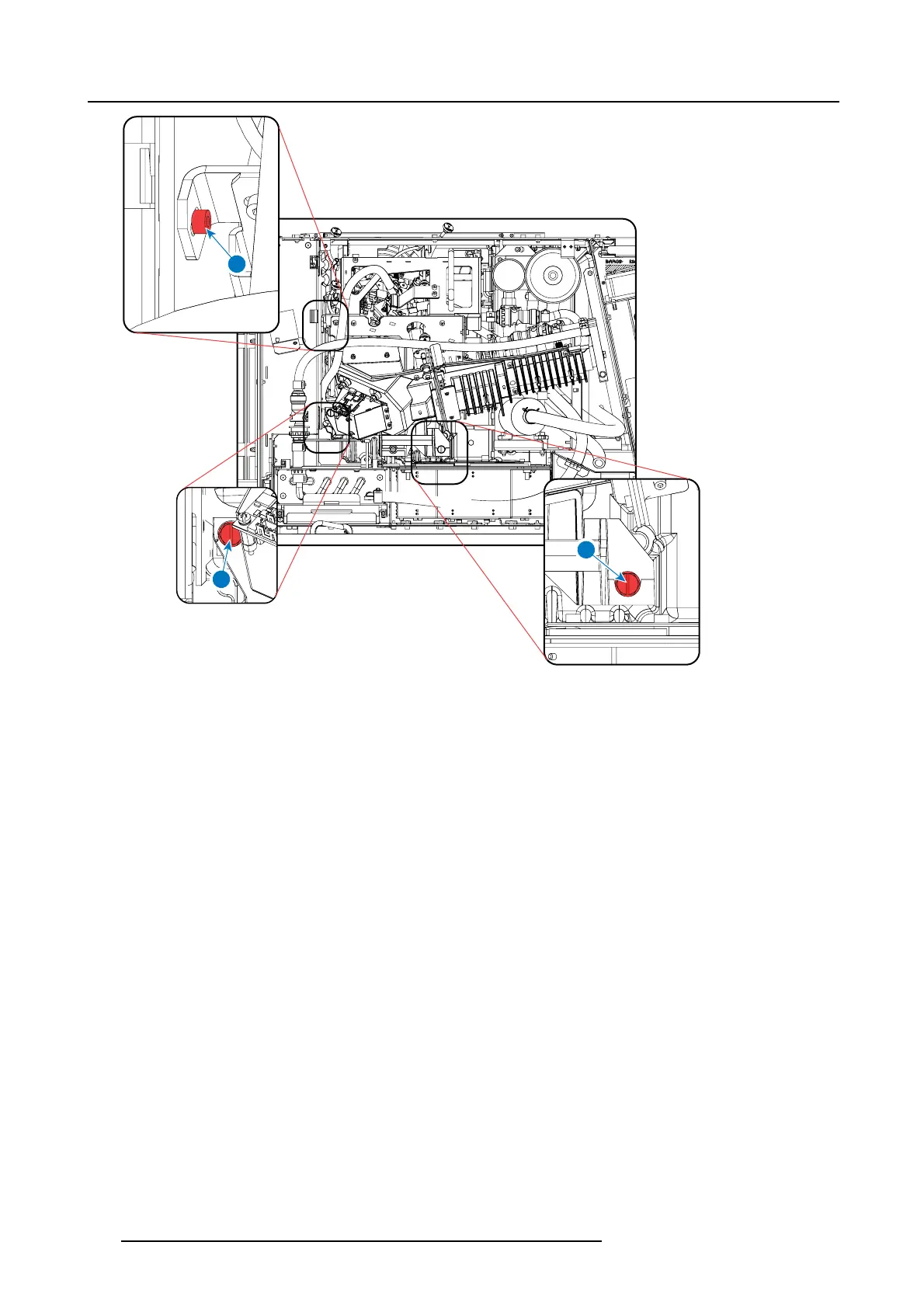

Image 13-10
Light processor fixation
5. Fixate the corner bracket to the projector fram e with an hexagon head s crew (3).
6. C lose the coo ling circuit.
Plug in the connector with the tube coming from the pum p into the connector going to the light process or.
Plug in the c onnector, mounted on the tube coming from the light pipe cooling block into the co nnector, mounted on the tube
going to the heat exchanger.
198
R5905312 HDF W SERIES 24/01/2013
