17. Board replacement procedure

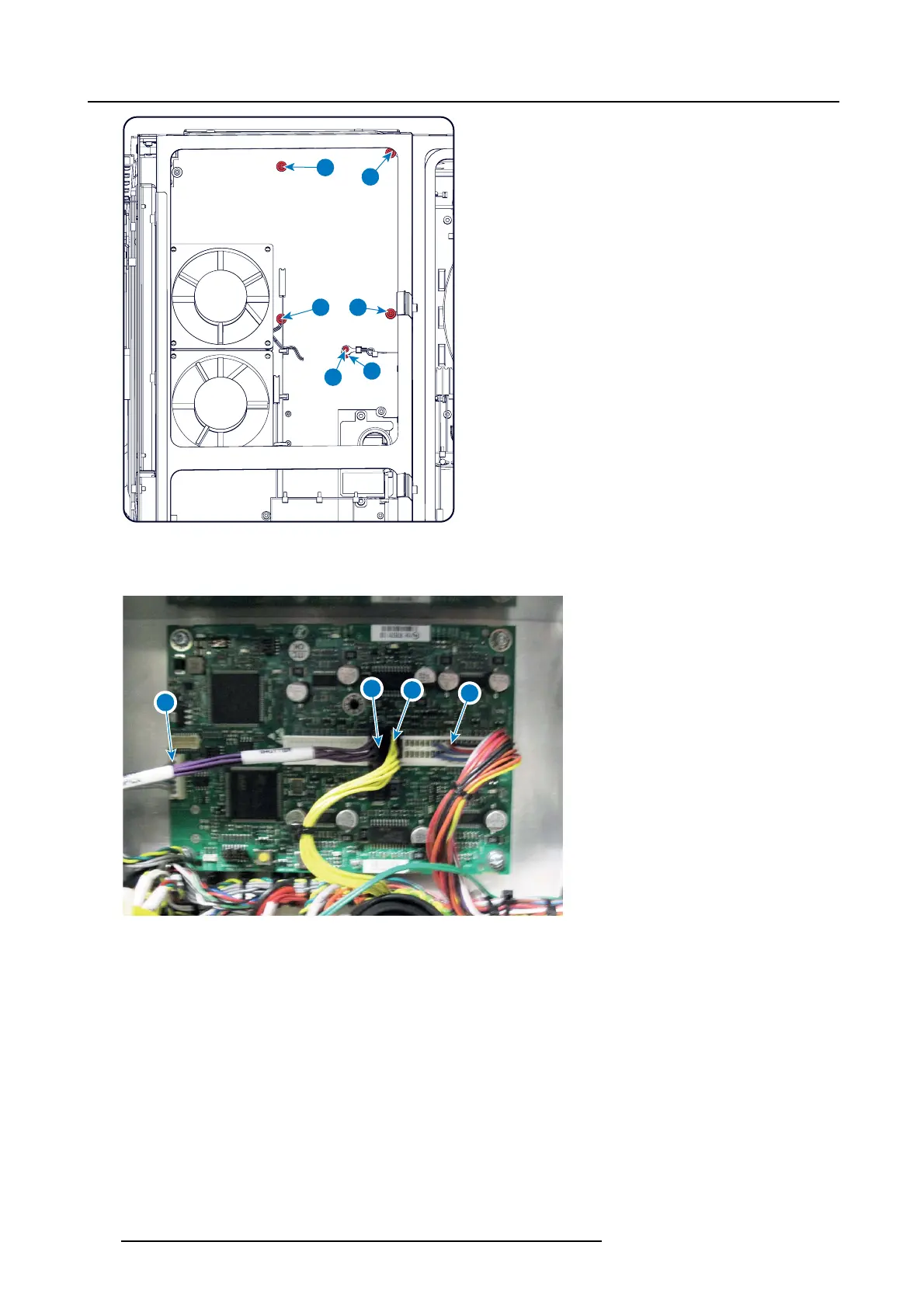

Image 17-9

6. R emov e the c over.

7. D isconnect the wire units (1 to 4) from the motor control board.

Image 17-10

Connections

8. R eplace the motor c ontrol board

. Use a T10 Torx screwdriver to loosen/fasten the ﬁve screws.

284

R5905312 HDF W SERIES 24/01/2013
