18. Fan replacement procedures
2
3

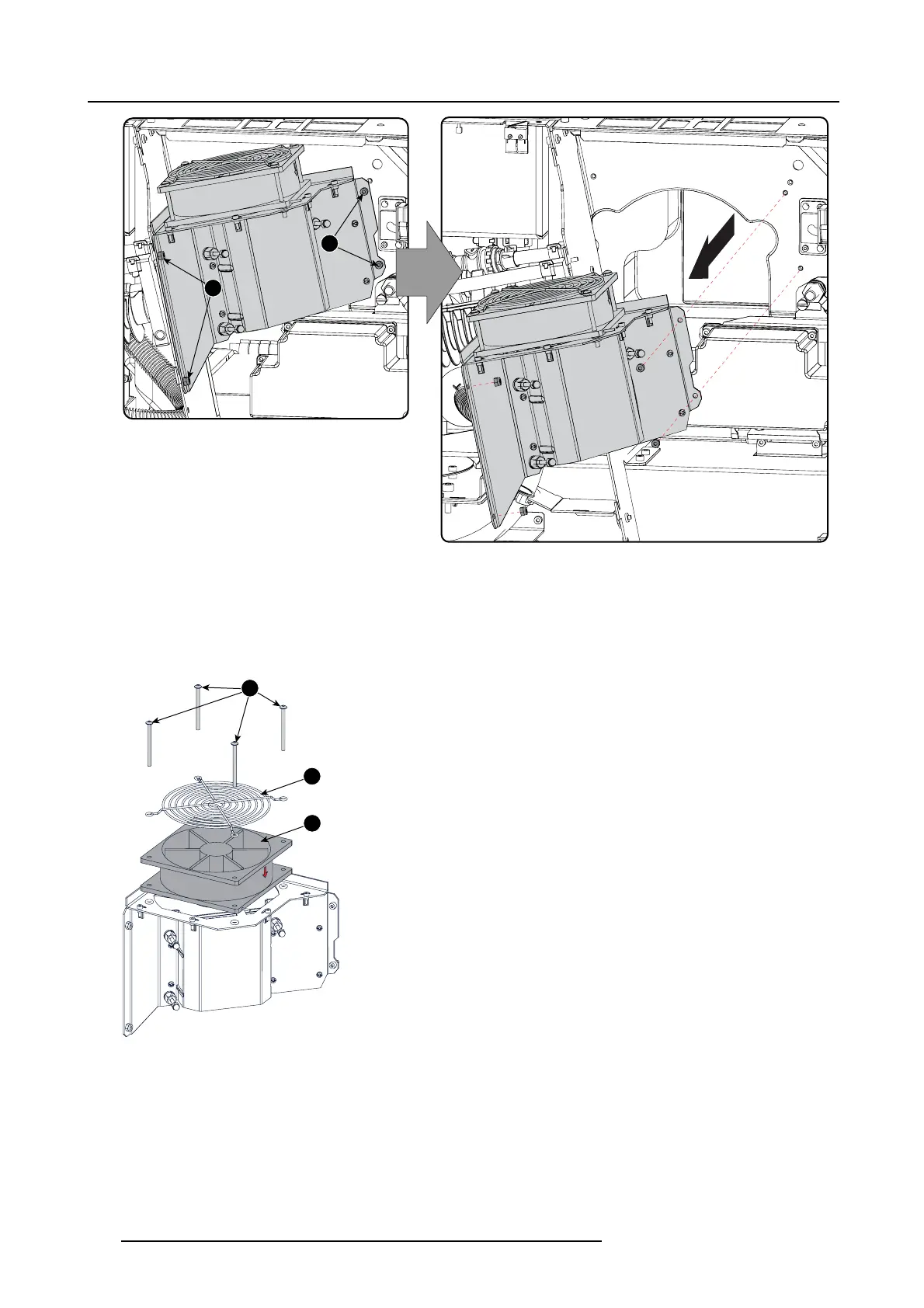

Image 18-8
Remove cold mirror
4. R emov e both nuts at the left side (reference 3).
Support the assembly while rem oving the n u ts.
5. S lide out the cold mirror assembly.
6. Turn out the 4 fixation screws ( reference 1).
Take off the fan protection grid ( reference 2) and remove the fan (reference 3.
1
2
3
Image 18-9
7. P lace new fan on the assembly with the arrow pointing to downwards.
8. P lace the protection grid on the fan and drive in the 4 fixation screws.
9. R e-install the cold mirror asse mbly.
292
R5905312 HDF W SERIES 24/01/2013
