Branson 2000X - Page 42

Chapter 4: Installation and Setup
Installation Requirements
4-12 011-003-991 EN

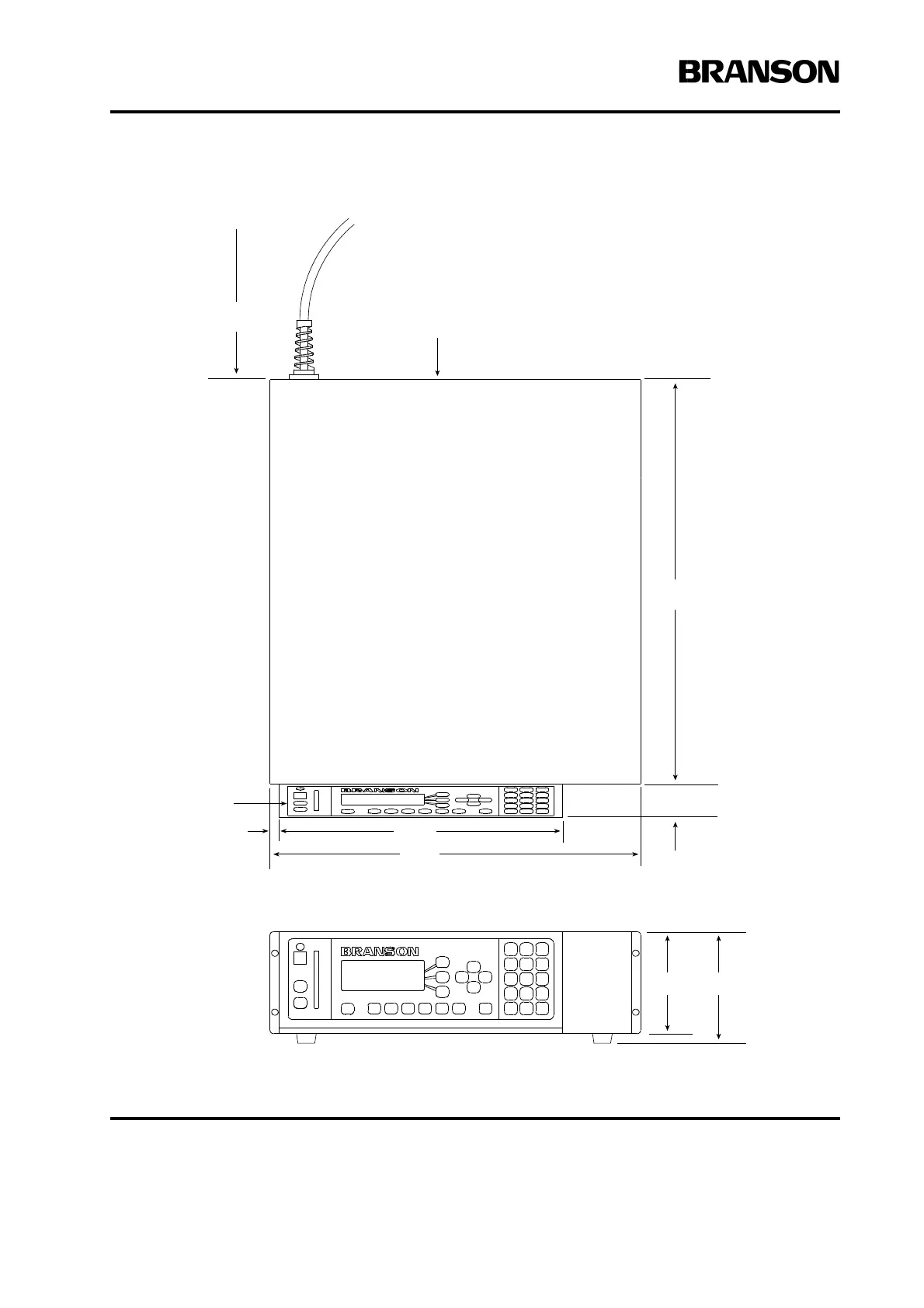

Figure 4.5 Power Supply Dimensional Drawing
0.45”
11.4mm
13.4”
340.1mm
17.55”
445.8mm
1.7”
43.6mm
20.6”
522.9mm
Air outlet is under
front panel
5.0” (127mm)
Desired Clearance
Air Intake
5.2”
132.4mm
5.7”
144.8mm
