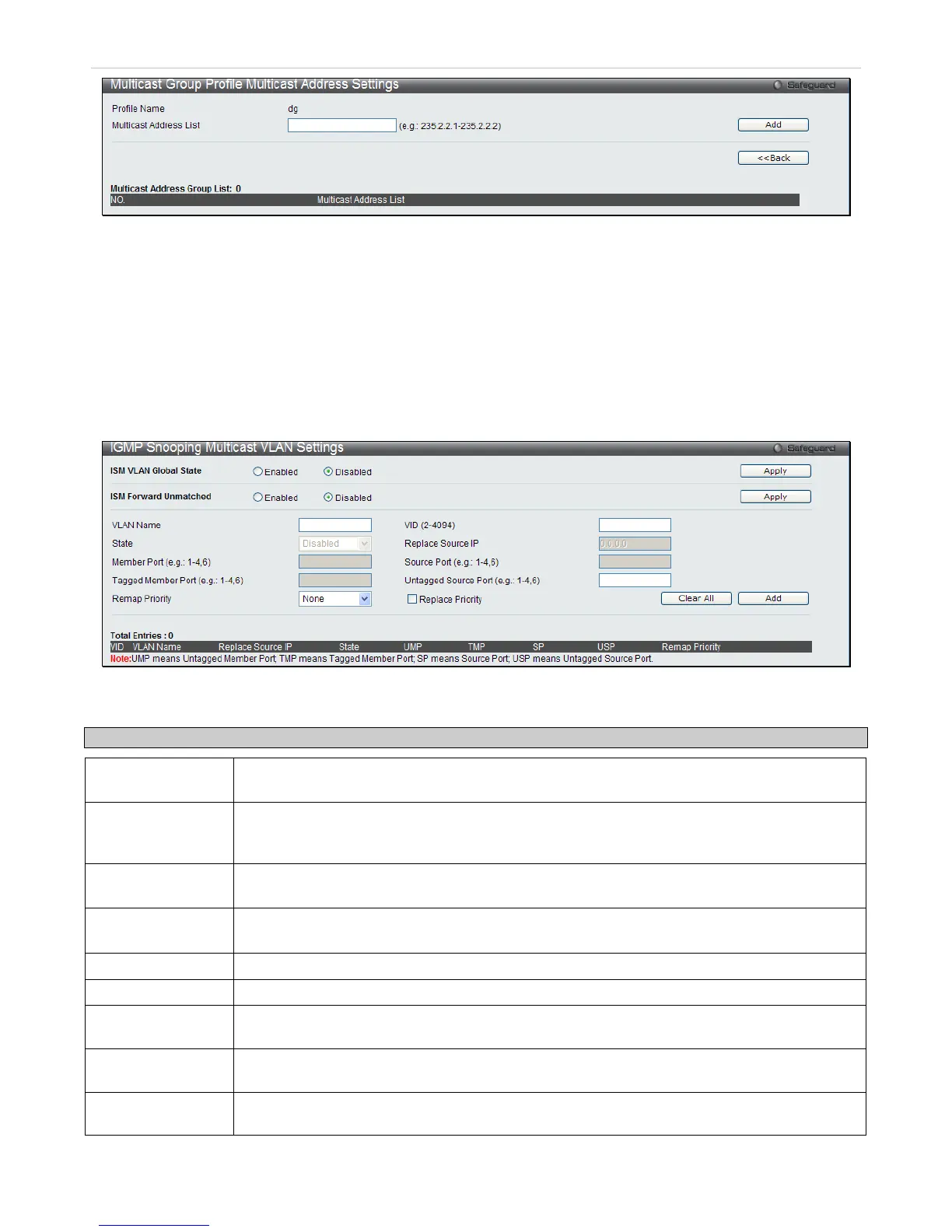

Figure 3 - 40 IGMP Multicast Group Profile Settings window – Group List
Enter the Multicast Address List and click Add the new information will be displayed in the table. Click <<Back to
return to the IGMP Multicast Group Profile Settings window and click Delete to remove an entry.
IGMP Snooping Multicast VLAN Settings
This window is used to configure the IGMP Snooping Multicast VLAN settings on the Switch.
To view this window, click L2 Features > IGMP Snooping > IGMP Snooping Multicast VLAN Settings as shown
below:
Figure 3 - 41 IGMP Snooping Multicast VLAN Settings window
The following fields can be set
Parameter Description
ISM VLNA Global
State
Click the Enabled or Disabled radio button to enable or disable multicast VLAN for the chosen
VLAN.
ISM Forward
Unmatched
When the Switch receives an IGMP packet, it will match the packet against the multicast profile
to determine the multicast VLAN to be associated with. Select Enabled to forward the packet.
Select Disabled to drop the packet.
VLAN Name
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN the user wishes to
modify the IGMP Snooping Settings for.
VID (2-4094)
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN the user wishes to
modify the IGMP Snooping Settings for.
State Use the drop-down menu to toggle between Enabled and Disabled.
Replace Source IP
Enter an IP address that new IP address to be used.
Member Port
(e.g.:1-4,6)
Select the ports that will be members of the Multicast VLAN. (Eg. Ports 1 to 4 and port 6)
Source Port
(e.g.:1-4,6)
Select the source Port for the Multicast VLAN.
Tagged Member
Port (e.g.:1-4,6)
Select the ports that will be tagged as members of the VLAN.
