CPU Access Profile List
In the following window, the user may globally enable or disable the CPU Interface Filtering State mechanism by using
the radio buttons to change the running state.
To access this window, click ACL > CPU Access Profile List
Choose Enabled to enable CPU packets to be scrutinized by the Switch and Disabled to disallow this scrutiny.

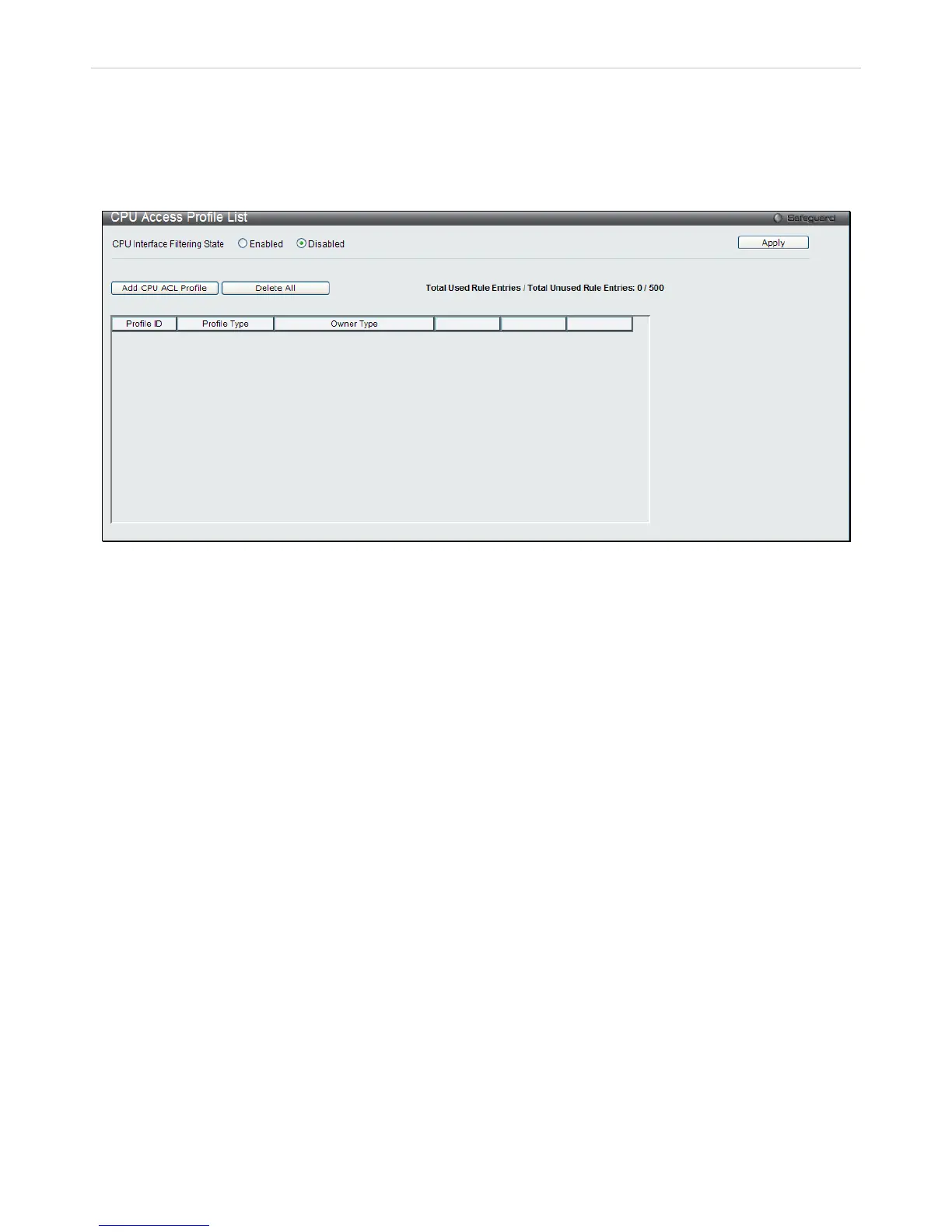

Figure 7 - 28 CPU Access Profile List window
This window displays the CPU Access Profile List entries created on the Switch (one CPU access profile of each type
has been created for explanatory purposes). To view the configurations for an entry, click the corresponding Show
Details button.
To add an entry to the CPU Acces Profile List, click the Add C PU ACL P rofile button. This will open the Add CPU
ACL Profile window. Click the Select button to see the window as shown below. To remove all CPU Access Profile
List entries, click the Delete All button.
The Switch supports four CPU Access Profile types: Ethernet (or MAC address-based) profile configuration, IP (IPv4)
address-based profile configuration, IPv6 address-based profile configuration, and Packet Content Mask.
The window shown below is the Add CPU ACL Profile window for Ethernet.
