Browse MLD Snooping Counter
This window is used to display the current MLD snooping counter information on the Switch.
To view this window, click Monitoring > MLD Snooping > Browse MLD Snooping Counter as shown below:

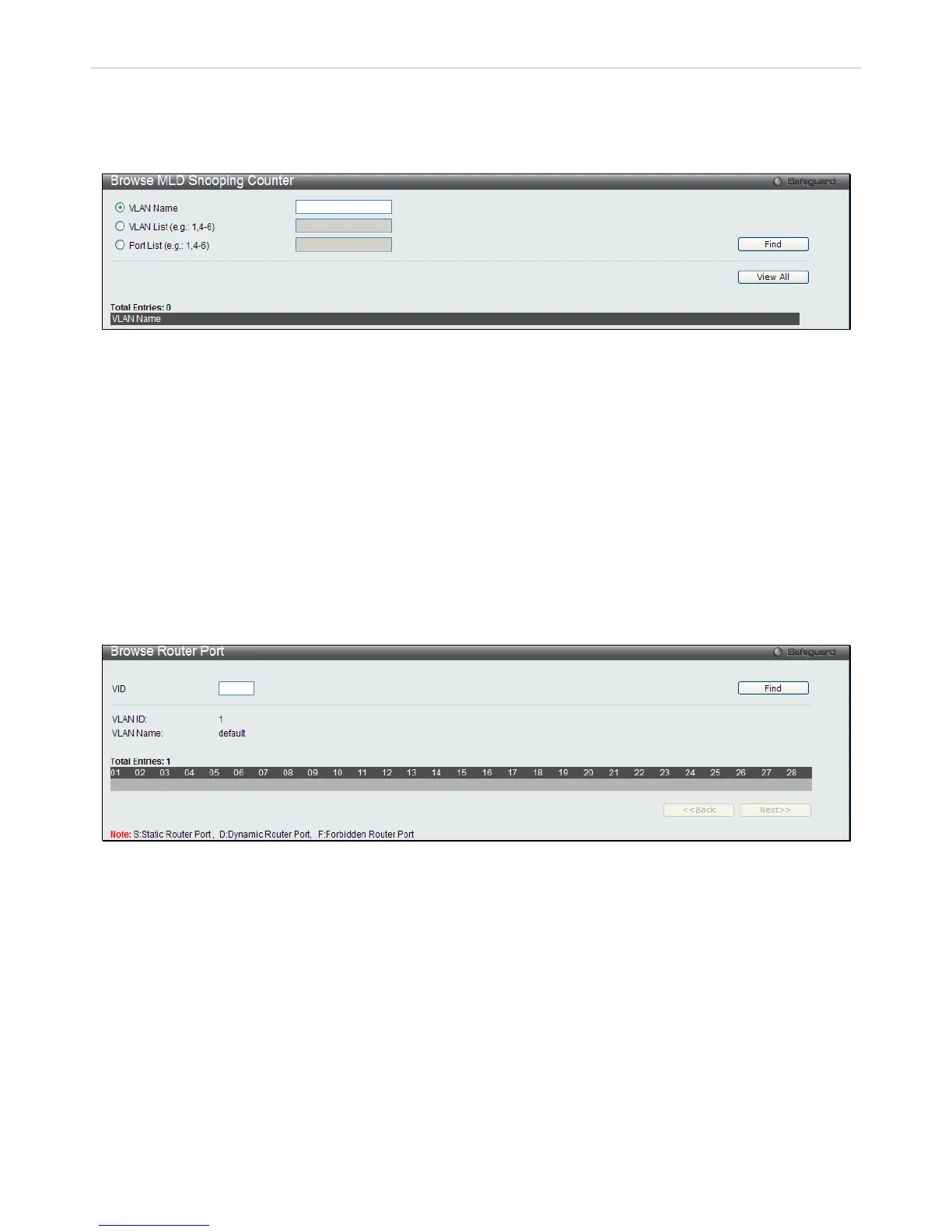

Figure 8 - 34 Browse MLD Snooping Counter window
IGMP Snooping
The following windows are used to configure the IGMP Snooping settings of the Switch.
Browse IGMP Router Port
This window displays which of the Switch’s ports are currently configured as router ports. A router port configured by a
user (using the console or Web-based management interfaces) is displayed as a static router port, which is
designated by S. A router port that is dynamically configured by the Switch is designated by D, while a Forbidden port
is designated by F. Enter a VID (VLAN ID) in the field at the top of the window and click the Find button.
To view this window, click Monitoring > IGMP Snooping > Browse IGMP Router Port as shown below:
Figure 8 - 35 Browse IGMP Router Port window
