Show VLAN Ports
This window allows the VLAN status for each of the Switch's ports to be viewed by VLAN. Select a port from the drop-
down menu at the top of the window and click the Find button.
To view the Browse VLAN click, Monitoring > Show VLAN Ports

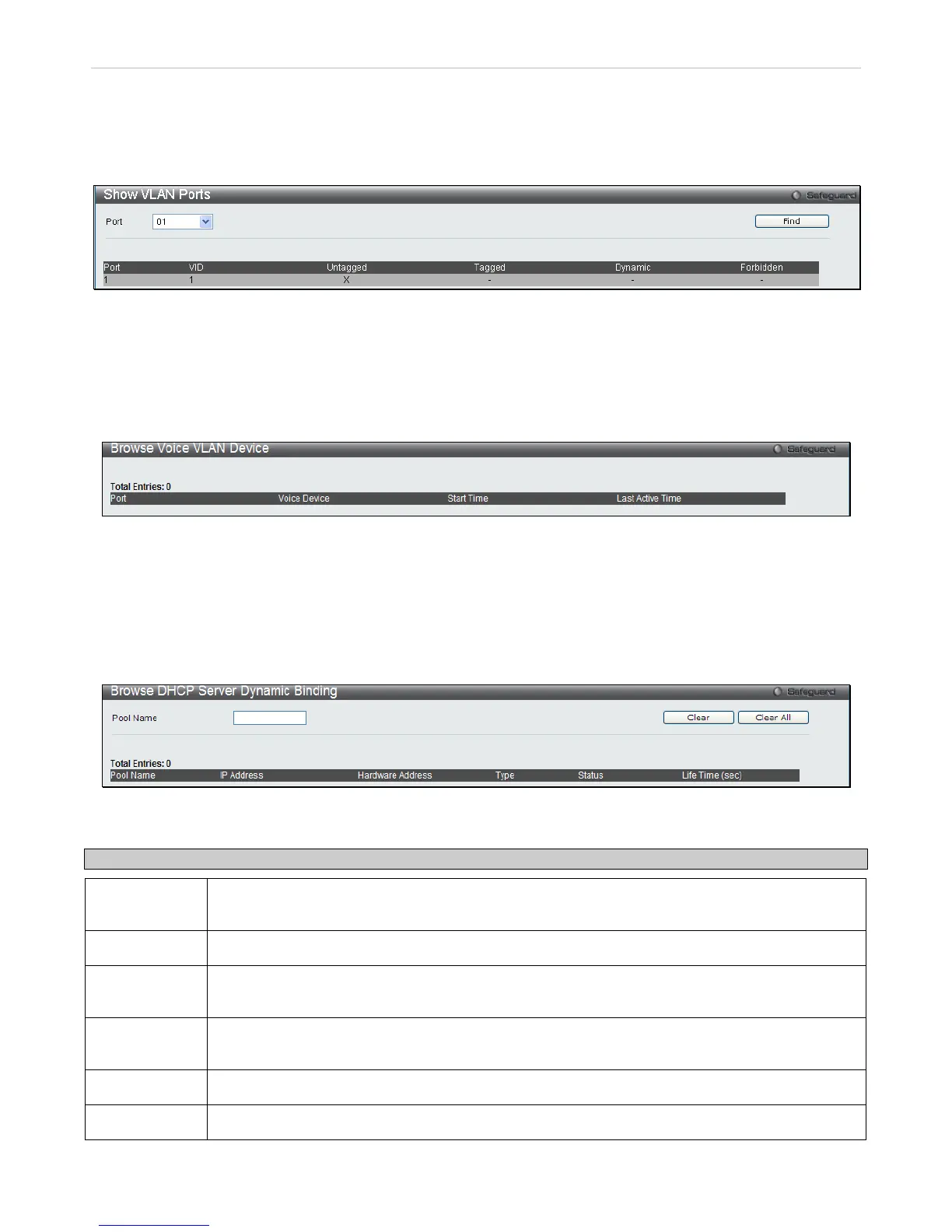

Figure 8 - 26 Browse VLAN window
Browse Voice VLAN Device
This window displays the available voice VLAN devices connected to the Switch ports. To view the Browse V oice
VLAN Device click, Monitoring > Browse Voice VLAN Device
Figure 8 - 27 Browse Voice VLAN Device window
Browse DHCP Server Dynamic Binding
This window allows users to view dynamically bound IP addresses of the DHCP server. These IP addresses are ones
that were allotted to clients on the local network and are now bound to the device stated by its MAC address. To view
this window, click Monitoring > Browse DHCP Server Dynamic Binding:
Figure 8 - 28 Browse DHCP Server Dynamic Binding window
The following parameters may be configured or viewed.
Parameter Description
Pool Name
To clear the corresponding Pool Name entries of this table, enter the name in Pool Name field and
click Clear. To clear all entries, click Clear All.
Pool Name
This field will denote the Pool Name of the displayed dynamically bound DHCP entry.
IP Address
This field will display the IP address allotted to this device by the DHCP Server feature of this
Switch.
Hardware
Address
This field will display the MAC address of the device that is bound to the corresponding IP address.
Type
This field will display the Status of the entry, whether it was Ethernet or IEEE802.
Status
This field will display the Status of the entry, whether it was dynamically bound or manually bound.
