QoS Scheduling
This window allows the user to configure the way the Switch will map an incoming packet per port based on its 802.1p
user priority, to one of the eight available hardware priority queues available on the Switch.
To view this window, click QoS > QoS Scheduling as shown below:

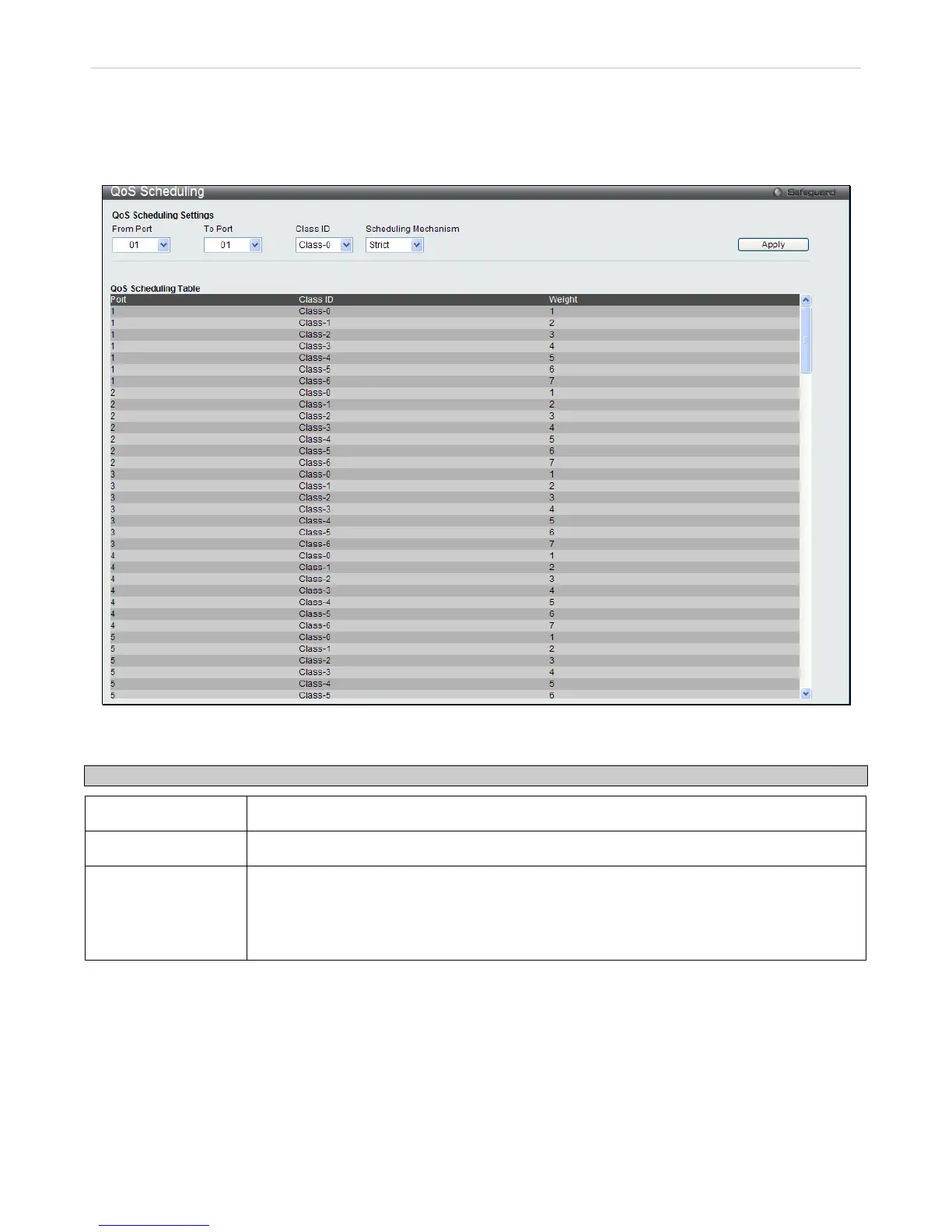

Figure 5 - 8 QoS Scheduling window
The following parameters can be configured:
Parameter Description
From Port / To Port
Enter the port or port list you wish to configure.
Class ID Select the Class ID, from 0-6, to configure for the QoS parameters.
Scheduling
Mechanism
Strict – The highest class of service is the first to process traffic. That is, the highest class of
service will finish before other queues empty.
Weight – Use the weighted round-robin (WRR) algorithm to handle packets in an even
distribution in priority classes of service.
Click Apply to implement changes made.
