Policy Based routing is a method used by the Switch
to give specified devices a cleaner path to the
destination network. Used in conjunction with the
Access Profile feature, the Switch will identify traffic
originating from a device using the Access Profile
feature and forward it on to a next hop router that has
a more direct connection to the destination network
than the normal routing scheme of your network.
Take the adjacent picture as an example. Let’s say
that the PC with IP address 10.1.1.1 belongs to the
manager of a company while the other PCs belong to
employees. The network administrator hopes to
circumvent network traffic by configuring the Policy
Routing Switch to make a more direct connection to
the Internet using a next hop router (10.2.2.2) that is
directly attached to a Gateway router (10.3.3.3), thus
totally avoiding the normal network and its related
traffic. To accomplish this, the user must configure
the Access Profile feature of the Switch to have the
PC, with IP address 10.1.1.1 as the Source IP
address and the Internet address as the destination
IP address (learned through routing protocols), along
with other pertinent information. Next, the
administrator must configure the Policy Route window
to be enabled for this Access Profile and its
associated rule, and the Next Hop Router’s IP
address (10.2.2.2) must be set. Finally, this Policy
Route entry must be enabled.
Once completed, the Switch will identify the IP
address using the Access Profile function, recognize
that is has a Policy Based route, and then forward the
information on to the specified next hop router, that
will, in turn, relay packets to the gateway router.
Thus, the new, cleaner path to the Internet has been
Policy Route Settings

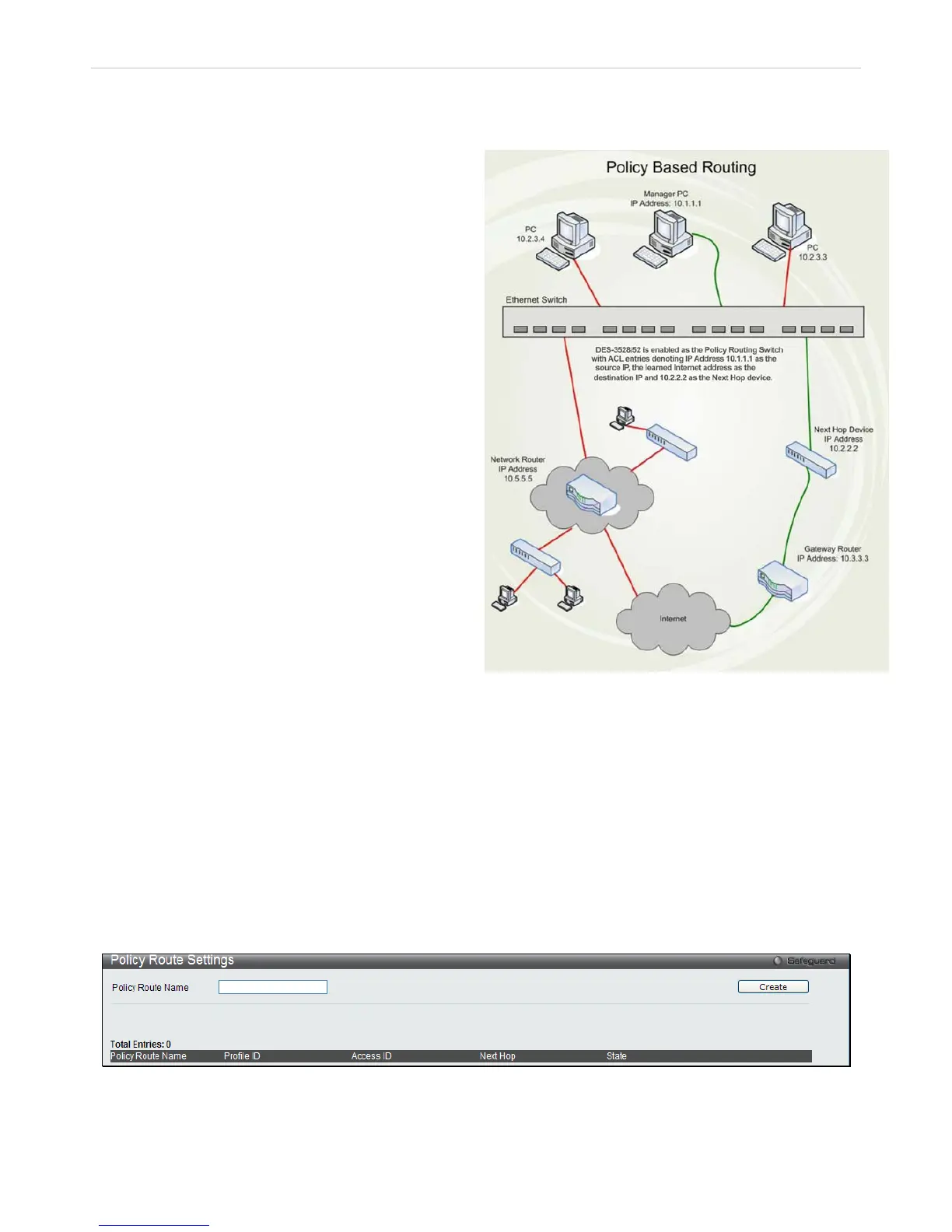

Figure 4 - 15 Policy-based Routing example
There are some restrictions and cautions when implementing this feature:
1. The access profile must first be created, along with the accompanying rule. If the administrator attempts to
enable this feature without the access profile, an error message will be produced.
2. If the access profile is configured as Deny, the packet will be dropped and not forwarded to the next hop
destination.
3. If the administrator deletes a rule or profile that is directly linked to a configured policy route, and error
message will be prompted to the administrator.
To configure the Policy Route feature, open the L3 F eatures folder and click Policy R oute S ettings, which will
display the following window for the user to configure.
Figure 4 - 16 Policy Route Settings window
