IGMP Snooping Forwarding
This window will display the current IGMP forwarding information on the Switch.
To view this window, click Monitoring > IGMP Snooping > IGMP Snooping Forwarding as shown below:

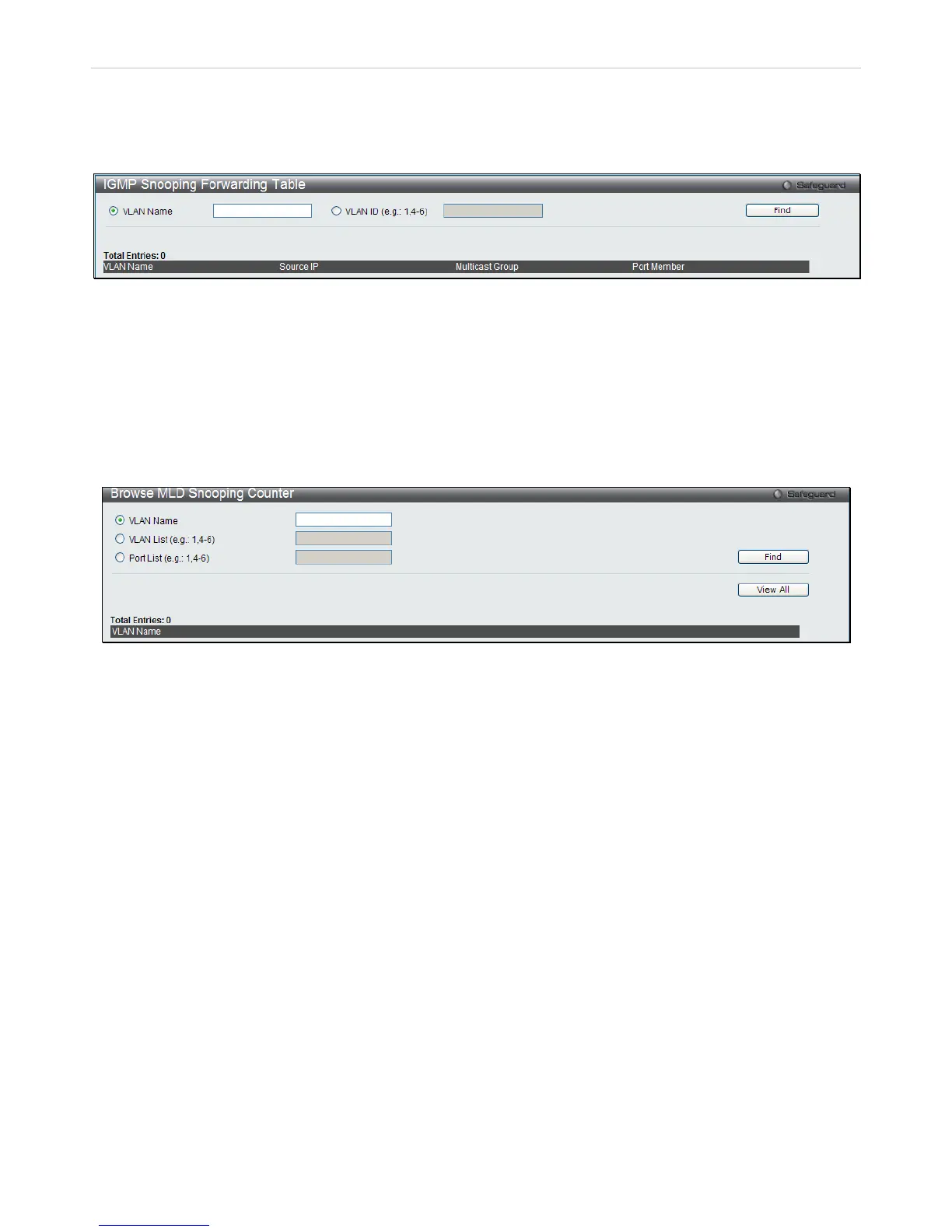

Figure 8 - 37 IGMP Snooping Forwarding Table window
Enter the VLAN Name or VLAN ID you wish to view and click Find, the information will be displayed in the lower half
of the window.
Browse IGMP Snooping Counter
This window is used to view the current IGMP snooping statistics on the Switch.
To view this window, click Monitoring > IGMP Snooping > Browse IGMP Snooping Counter as shown below:
Figure 8 - 38 Browse IGMP Snooping Counter window
Enter the VLAN Name, VLAN List or Port List of the VLAN you wish to view and click Find.
Ethernet OAM
This folder contains two windows to view Ethernet OAM Event Log information and Ethernet OAM Statistics.
Browse Ethernet OAM Event Log
This window allows the user to view the Ethernet OAM event log information. The Switch can buffer up to 1000 event
logs. The event log will provide and record detailed information about each OAM event. Specify the port number and
port list you wish to view and click Find. To remove an entry, enter the appropriate information and click Clear.
To view this window, click Monitoring > Ethernet OAM > Browse Ethernet OAM Event Log as shown below:
