Mode Select the mode between Auto and Manual. If the mode is Auto, the port may become the
voice VLAN member port by auto-learning. If the MAC address of the the received packet
matches the configured OUI (Organizationally Unique Identifier) addresses, the port will be
learned as dynamic member port. The dynamic membership will be removed via the aging out
mechanism. If the mode is Manual, the port needs to be manually added into or removed from
the voice VLAN by 802.1Q VLAN configuration command.
Voice VLAN OUI Settings
This window allows the user to configiure the user-defined voice traffic’s OUI. There are some pre-defined OUIs and
when the user configures personal OUI, these pre-defined OUIs must be avoided. Followins are the pre-defined voice
traffic’s OUI:
OUI Vendor Mnemonic Name
00:E0:BB 3COM 3com
00:03:6B Cisco cisco
00:E0:75 Veritel veritel
00:D0:1E Pingtel pingtel
00:01:E3 Siemens siemens
00:60:B9 NEC/ Philips nec&philips
00:0F:E2 Huawei-3COM huawei&3com
00:09:6E Avaya avaya
To view this window click L2 Features > Voice VLAN > Voice VLAN OUI Settings.

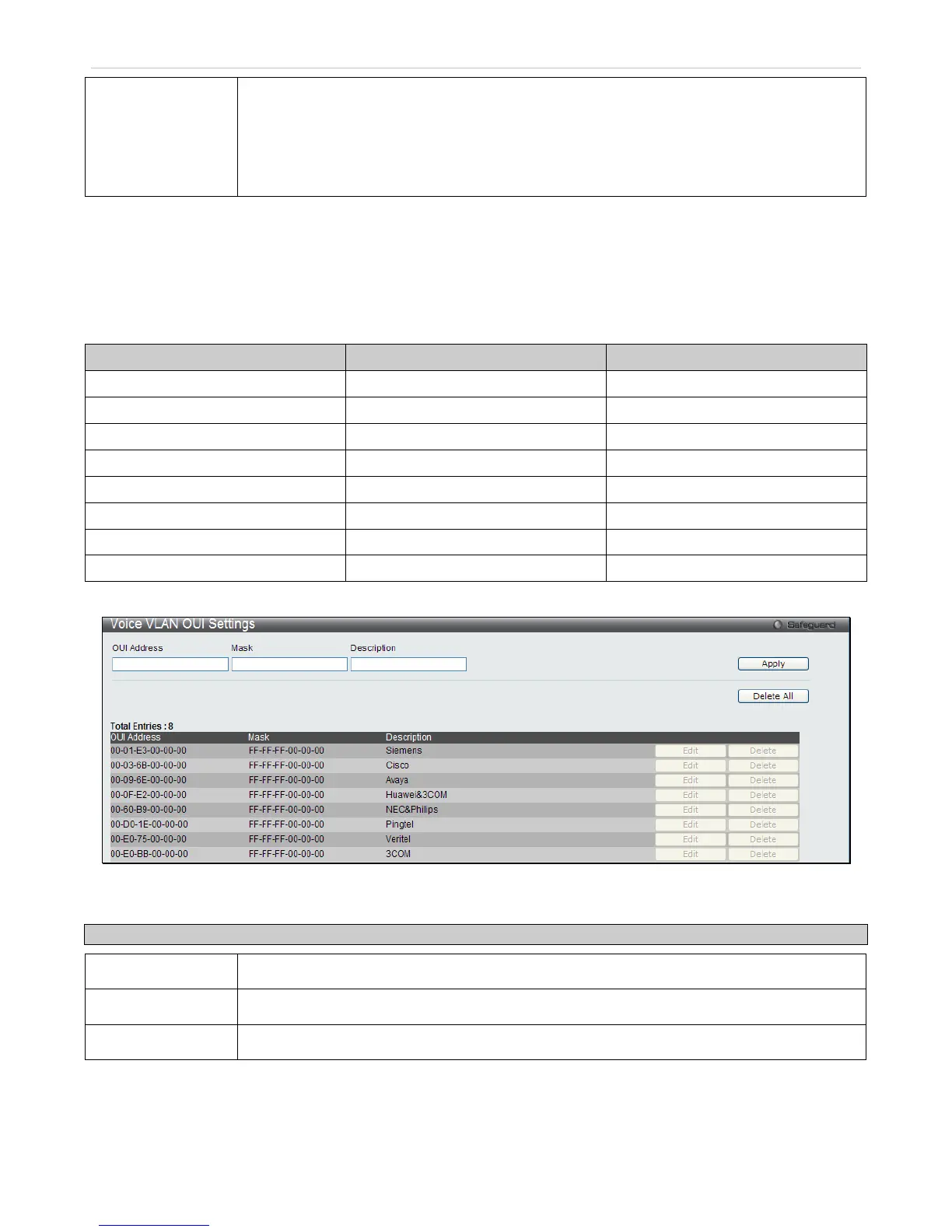

Figure 3 - 14 Voice VLAN OUI Settings window
The following fields can be configured.
Parameter Description
OUI Ad dress
Enter a user-defined OUI MAC address
Mask
Enter the user-defined OUI MAC address mask.
Description
Enter the description for the user-defined OUI.
