Web-based User Interface
The user interface provides access to various Switch configuration and management windows, allows you to view
performance statistics, and permits you to graphically monitor the system status.
Areas of the User Interface

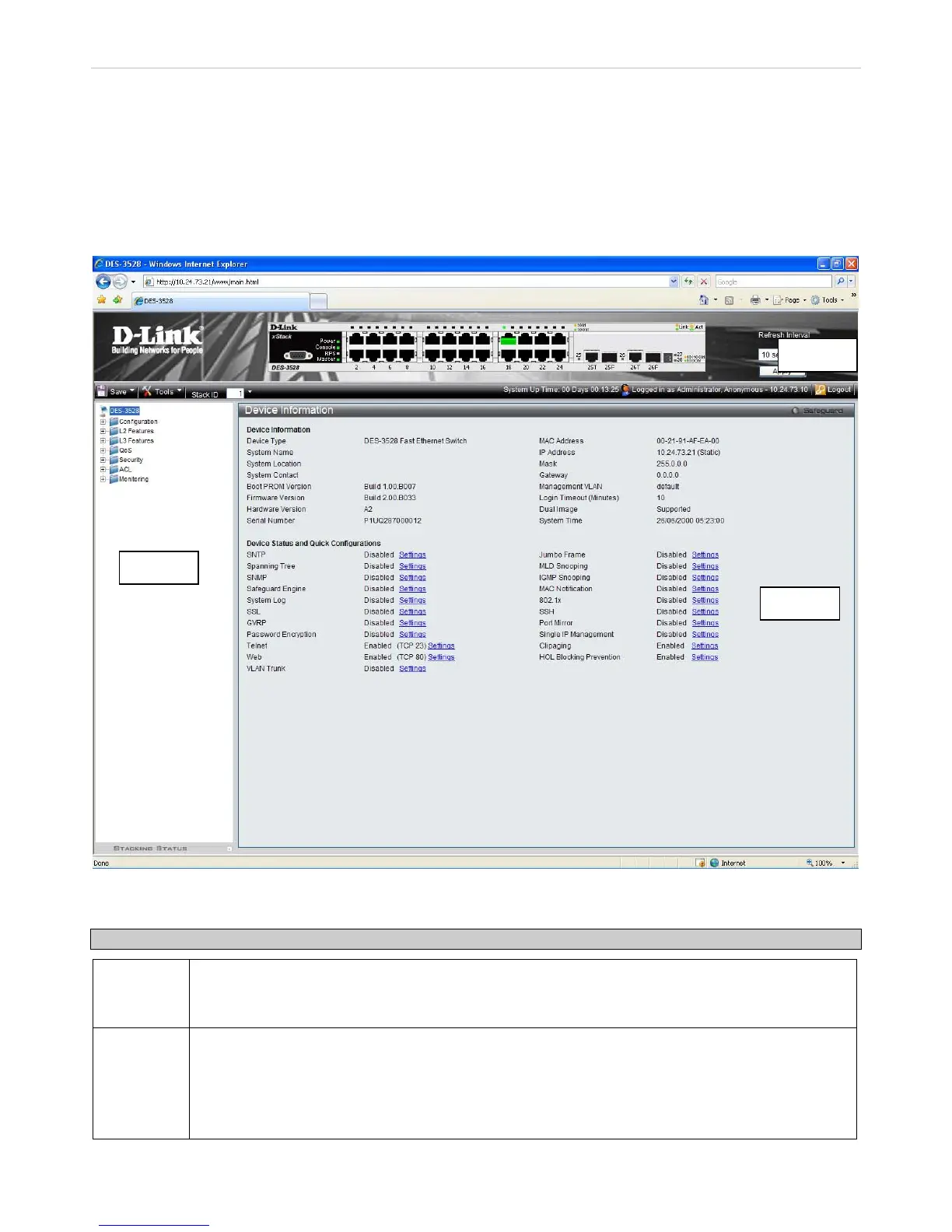

The figure below shows the user interface. The user interface is divided into three distinct areas as described in the
table.
Figure 1 - 2 Main Web-Manager page
Area Function
Area 1
Select the folder or window to be displayed. The folder icons can be opened to display the
hyperlinked window buttons and subfolders contained within them. Click the D-Link logo to go to the
D-Link website.
Area 2
Presents a graphical near real-time image of the front panel of the Switch. This area displays the
Switch's ports and expansion modules, showing port activity, duplex mode, or flow control,
depending on the specified mode.
Various areas of the graphic can be selected for performing management functions, including port
configuration.
Area 2
