Voice VLAN Name
Click the radio button and enter a name for a voice VLAN.
Voice VLAN ID
(1-4094)
Click the radio button and enter a VLAN ID for a voice VLAN.
Priority
Use the pull down menu to set the priority of the voice VLAN. The voice VLAN priority will be
the priority associated with the voice VLAN traffic to distinguish the QoS of the voice traffic
from data traffic. It’s range is 0 – 7, the default value is 5.
Aging Time (1-
65535)
Enter a period of time in minutes to remove a port from voice VLAN if the port is an automatic
VLAN member. When the last voice device stops sending traffic and the MAC address of this
voice device is aged out, the voice VLAN aging timer will be started. The port will be removed
from the voice VLAN after expiration of voice VLAN aging timer.
Trap / Log
Use the pull down menu to enable or disable the trap/log state for voice VLAN. If there is a
new voice device detected or a port join/leave the voice VLAN dynamically, and the trap/log is
enabled, then a trap/log will be triggered.
Voice VLAN Port Settings
This window allows you to configure the voice VLAN port settings.
To view this window click L2 Features > Voice VLAN > Voice VLAN Port Settings.

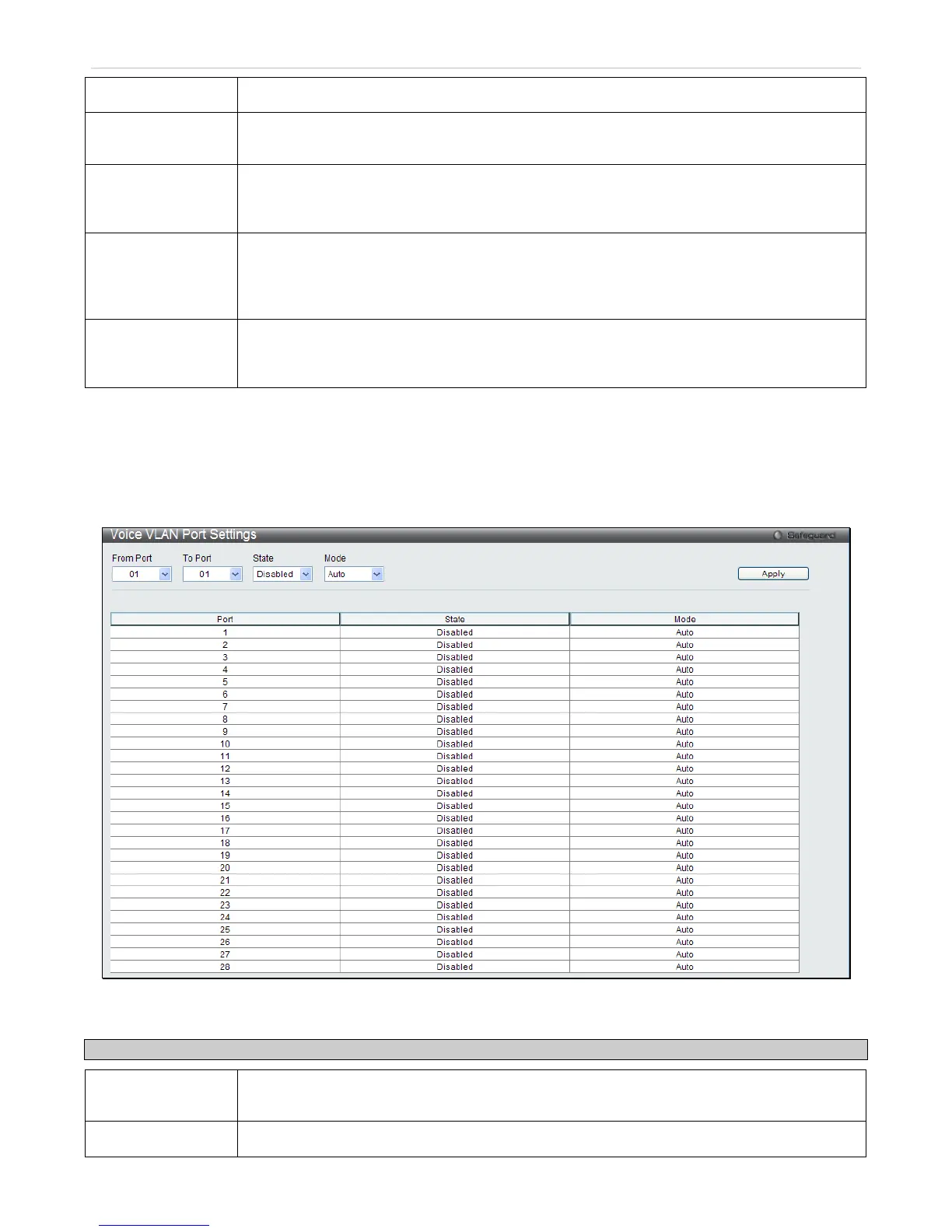

Figure 3 - 13 Voice VLAN Port Settings window
The following fields can be configured.
Parameter Description
From Port / To Port
A consecutive group of ports that are part of the voice VLAN configuration starting with the
selected port.
State
Use the pull down menu to enable or disable the voice VLAN function on the port.
To Next Page
