VLAN Precedence Settings
The VLAN precedence settings are used to configure VLAN classification precedence on each port. You can specify
the order of MAC-based VLAN classifications and subnet-based VLAN classifications. If a port’s VLAN classificataion
is a MAC-based precedence, MAC-based VLAN classification will be processed first. If MAC-based VLAN
classification fails, the subnet-based VLAN classification will be executed. If a port’s VLAN classification is subnet-
based VLAN precedence, the subnet-based VLAN classification will be processed first. If subnet-based VLAN
classification fails, the MAC-based VLAN classification will be executed.
To view this window, click L2 Features > Subnet VLAN > VLAN Precedence Settings as shown below:

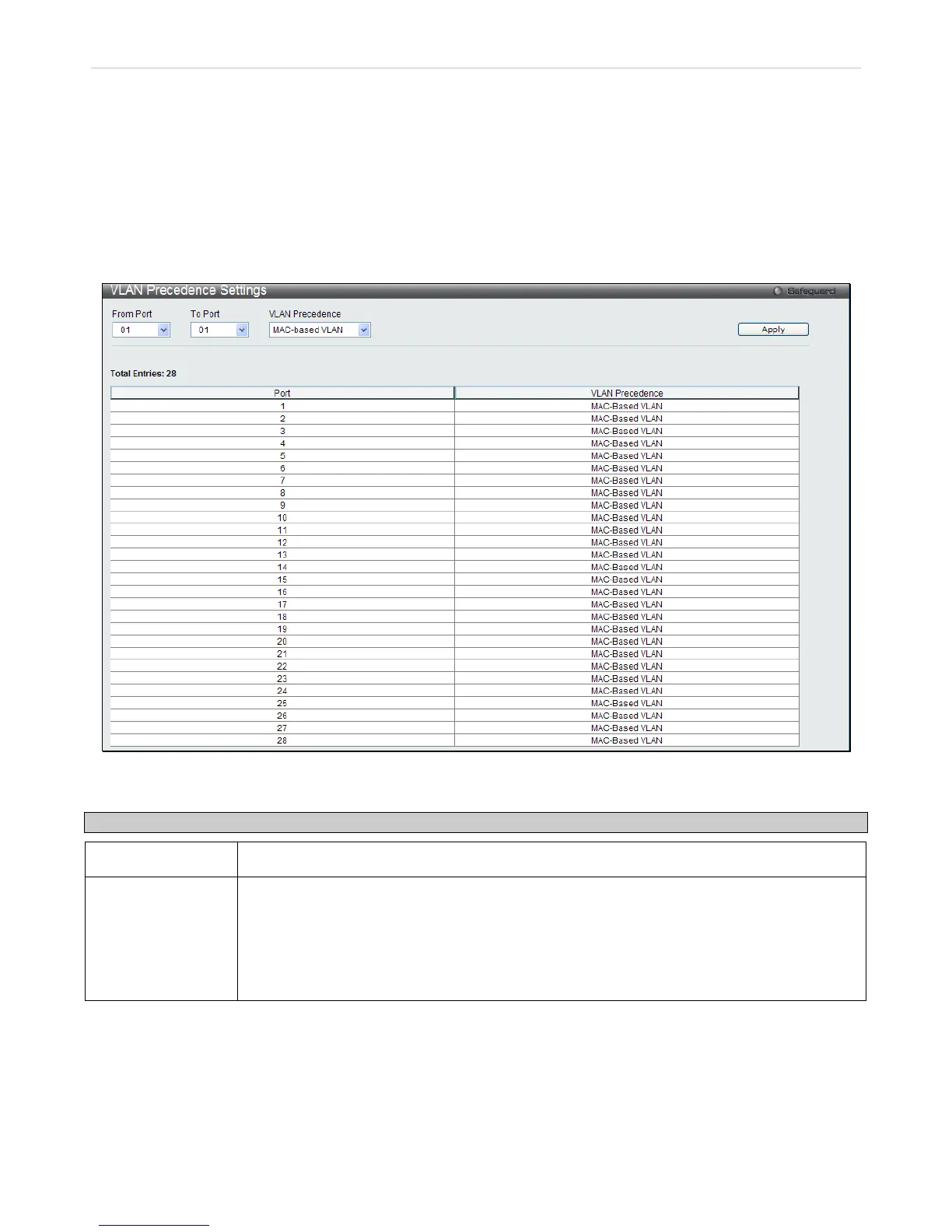

Figure 3 - 17 VLAN Precedence Settings window
The following parameters can be configured:
Parameter Description
From Port…To Port
Specify the port or range of ports you wish to configure.
VLAN Precedence
Use the drop down menu to select the VLAN precedence, choose either MAC Based VLAN or
Subnet VLAN.
MAC Based VLAN – Specifies that the MAC-based VLAN classification is given precedence
over the subnet-based VLAN classification.
Subnet VLAN – Specifies that the subnet-based VLAN classification is given precedence over
the MAC-based VLAN classification.
Click Apply to implement changes made.
