Untagged Source
Port (e.g.:1-4,6)
Select the untagged source port to add to the multicast VLAN.
Remap Priority
The remap priority is associated with the data traffic to be forwarded on the multicast VLAN. If
None is selected, the packet’s original priority will be used.The default setting is none.
Replace Priority
Select the option so that the packet’s priority will be changed based on the remap priority by
the Switch. This option takes effect only when remap priority is set.
To modify an entry, click the corresponding Modify. To edit an entry, click the corresponding Edit button. To delete an
entry, click the corresponding Delete button.
To add a multicast VLAN to a profile that has been created, click the corresponding hyperlinked
Group List to reveal
the following window:

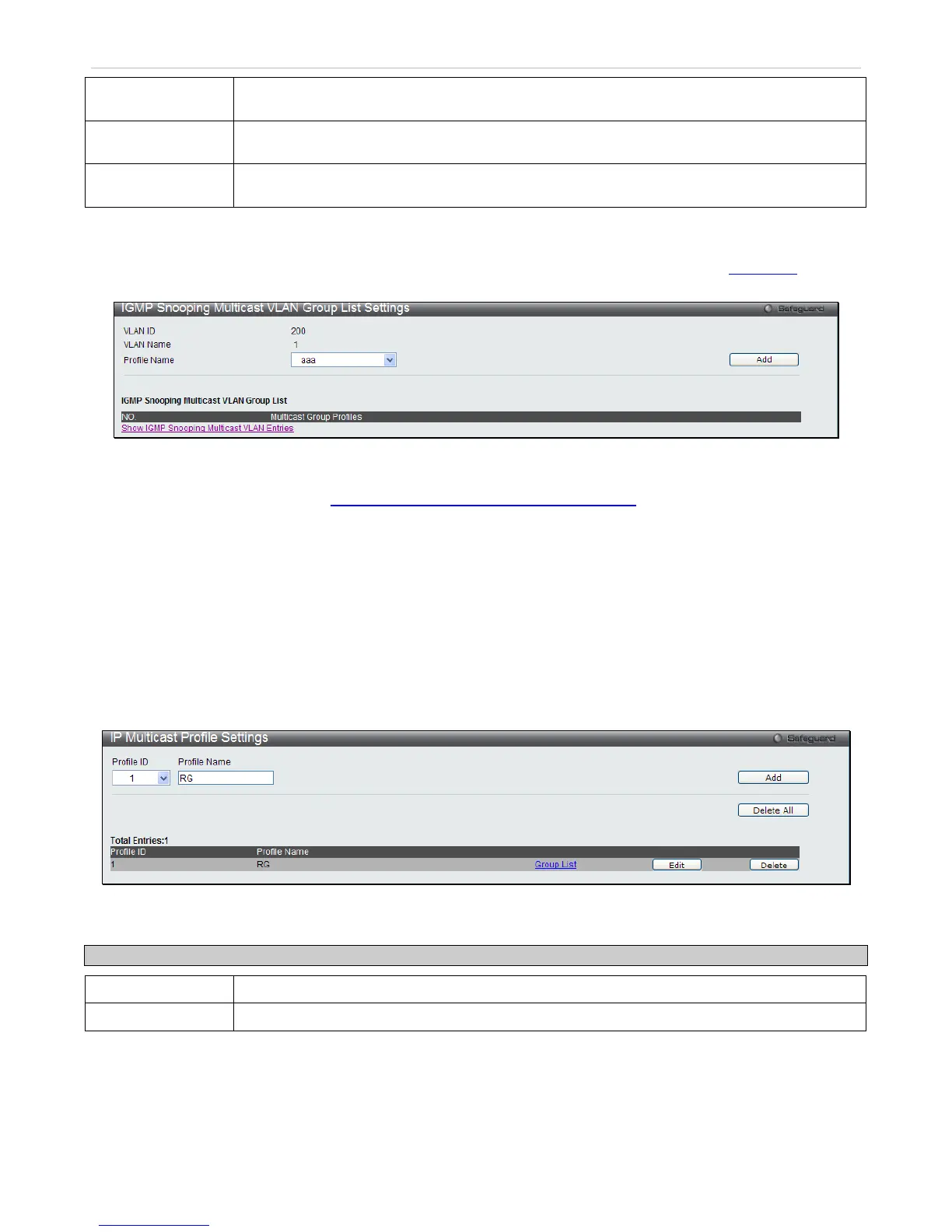

Figure 3 - 42 IGMP Snooping Multicast VLAN Settings window – Group List
Select the multicast group profile name from the Profile Name drop-down menu, and click Add. The new information
will be displayed in the table. Click Show IGMP Snooping Multicast VLAN Entries
to return to the IGMP S nooping
Multicast VLAN Settings window and click Delete to remove an entry.
IPv4 Multicast Profile Settings
The IPv4 M ulticast P rofile S ettings window allows the user to add a profile to which multicast IPv4 address(es)
reports are to be received on specified ports or VLANs on the Switch. This function will therefore limit the number of
reports received and the number of multicast groups configured on the Switch. The user may set an IPv4 Multicast
address or range of IPv4 Multicast addresses to accept reports (Permit) or deny reports (Deny) coming into the
specified switch ports or VLANs.
To view this window, click L2 Features > IGMP Snooping > IPv4 Multicast Profile Settings as shown below:
Figure 3 - 43 IPv4 Multicast Profile Settings window
The following fields can be set
Parameter Description
Profile ID
Use the drop-down menu to choose a Profile ID.
Profile Name
Enter a name for the IP Multicast Profile.
To edit and entry click the corresponding Edit button and to delete an entry click the corresponding Delete button.
To Next Page
