DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
106
To add a new Multicast Filter enter the information and click Apply. To view all the VLANs, click the View All button.
CPU Filter L3 Control Packet Settings
The CPU Filter L3 Control Packet Settings is used to discard the Layer 3 control packets sent to CPU from specific
ports.

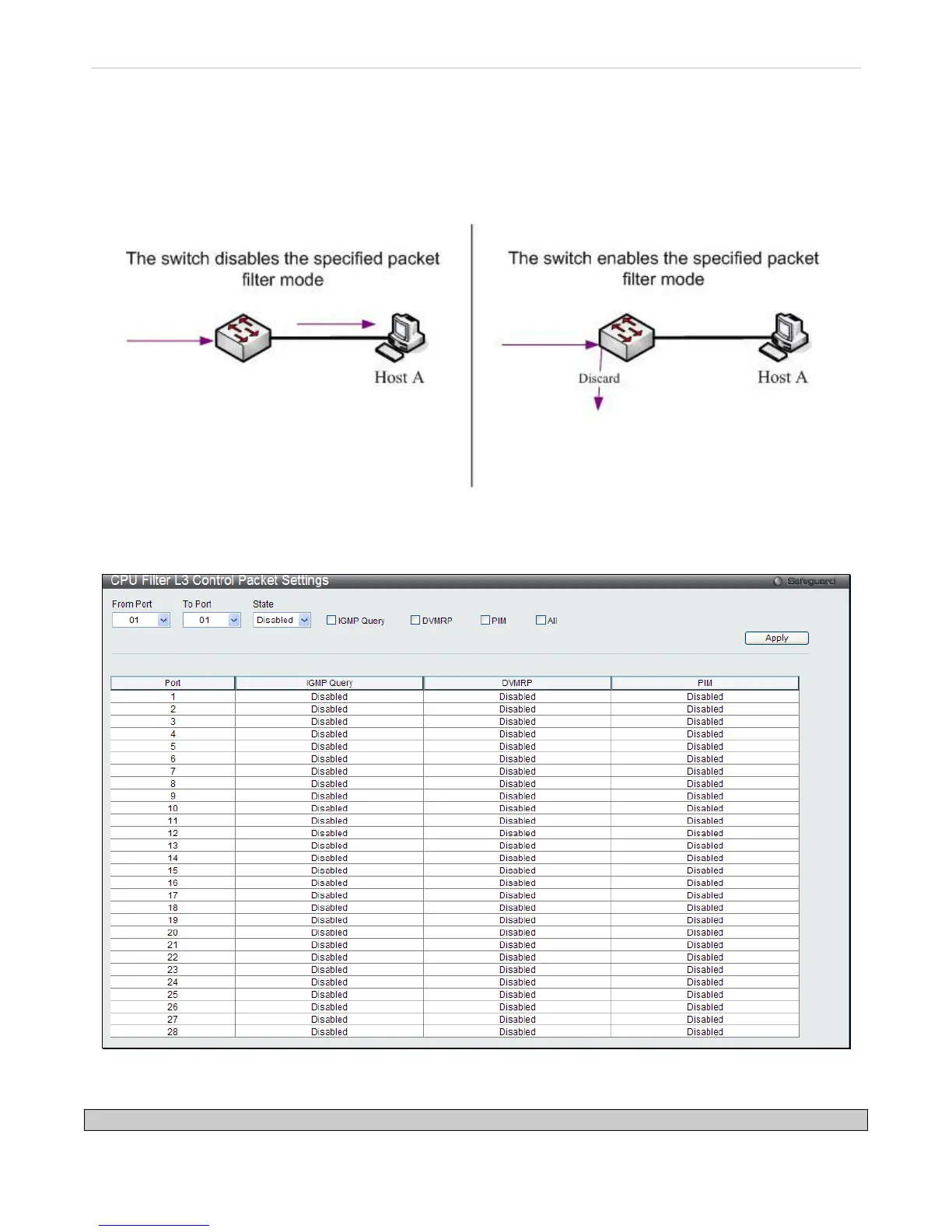

Figure 3 - 49 Method of dealing with the specified packet
The above figure displays how the Switch handles the specified packets when enabling the function.
To configure these settings, click L2 Features > IGMP Snooping > CPU Filter L3 Control Packet Settings
Figure 3 - 50 CPU Filter L3 Control Packet Settings window
The following fields can be set
Parameter Description
